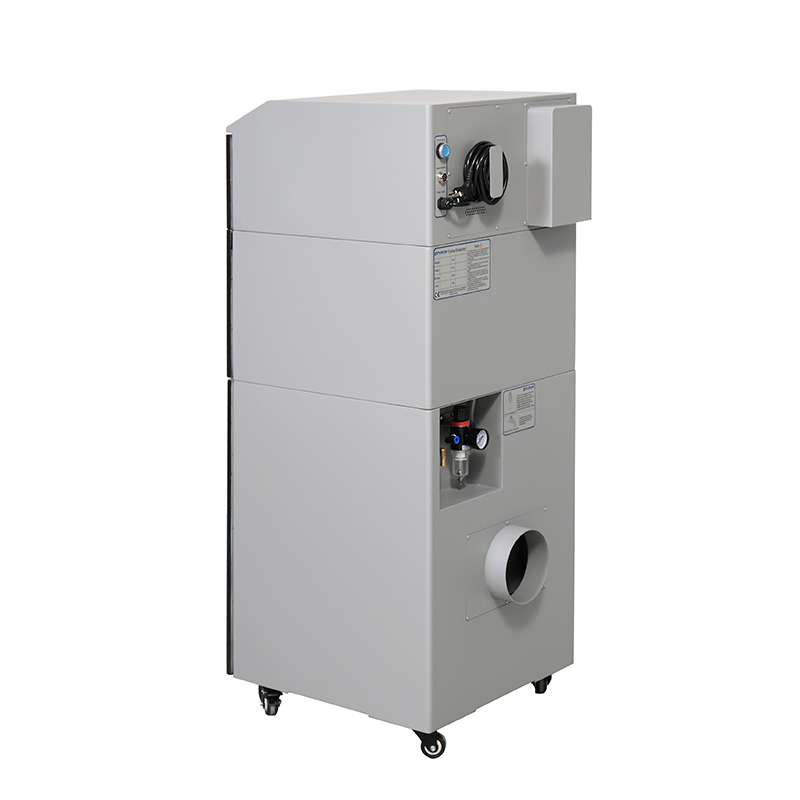

Description
[PURE-AIR] welding fume purifier uses 10KPa vortex core pressurization + nano-level dense purification, 0.3 micron heavy metal fume interception rate of 99.99%, solving the problem of zinc/chromium fume adhesion!
Applicable scenarios:
New energy battery module welding, aerospace titanium alloy welding, automobile chassis multi-station purification.
Key features
- Purification system
Nano-level purification and patented pulse purification system
- Nano-level filter matrix: optional explosion-proof/high temperature resistant models, suitable for aluminum welding/stainless steel welding and other working conditions
- Automatic pulse cleaning, welding smoke stripping efficiency increased by 300% compared with traditional
- Production line integration design
- Ultra-small body design saves 40% space, embedded deployment of welding robot workstation
- Universal casters + quick-connect module, 10 seconds to complete cross-station migration
- Intelligent Control
Full-color intelligent control center
- 7-inch color capacitive touch screen: real-time monitoring of PM0.3/ozone, data directly connected to MES system
- Dynamic air volume algorithm: intelligent identification of equipment status, dynamic adjustment of 10-18KPa negative pressure
- Hard-core technical guarantee
- Turbo core supercharged engine: 30,000 hours of zero maintenance, ultra-low noise
- Quick-release seal: extremely fast core replacement, eliminating clean workshop pollution
Table parameters：
| Application conditions | Processing materials | Laser welding: Carbon steel, stainless steel, galvanized sheet and other materials. | ||
| Working format | Small workpiece | |||
| Model | PA-D800i | PA-D1600i | PA-D2400i | |
| Airflow | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||
| Control system | PURE-AIR INTELLIGENT PURIFICATION SYSTEM (PIPS) | |||
| Air quality sensor (Optional) | PM1.0 / VOC / HCL / O3 / Odor | |||
| Filter | Pre filter | Flame retardant PTFE cartridge filter | ||
| Main filter | H14 deeppleat filter (99.997% @0.3um) | |||
| Noise level * | < 63dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 500*597*1296mm | 670*794*1570mm | 750*907*1564mm | |
| Weight | 86kg | 180kg | 200kg | |
| Inlet size | 100mm / 125mm | 150mm | 200mm | |
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||
| * At typical operating speed testing data. | ||||

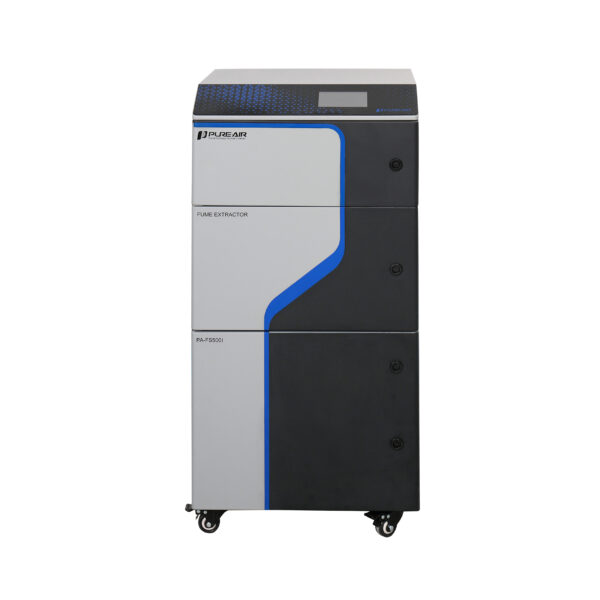

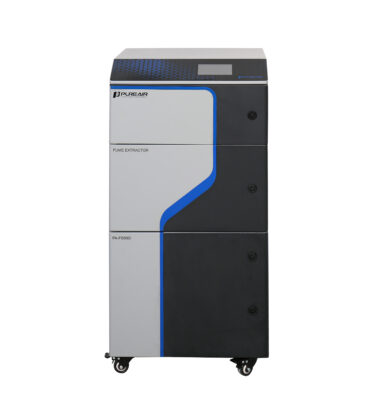

PURE-AIR FS
