Description
Enable safe material innovation while meeting standards.

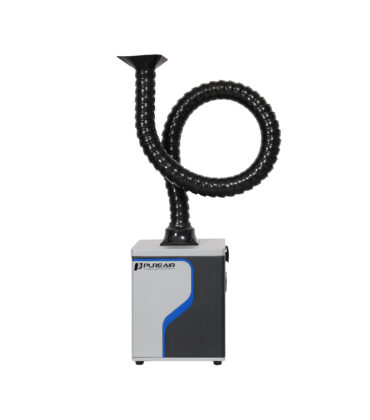

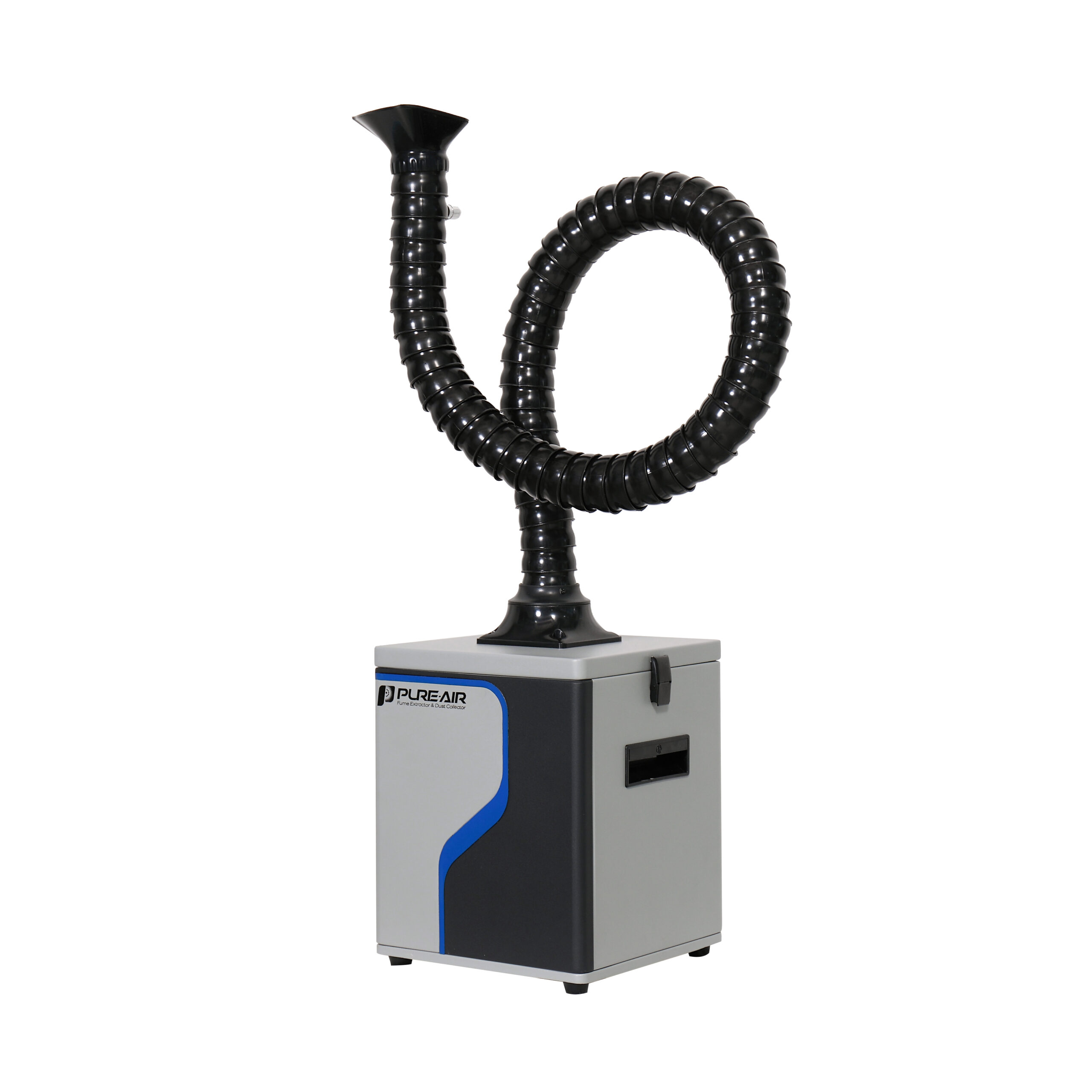

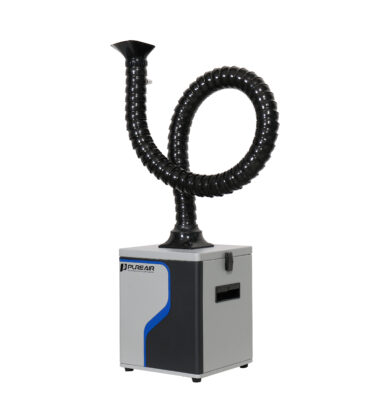

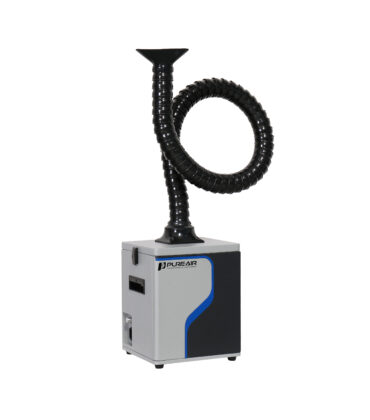

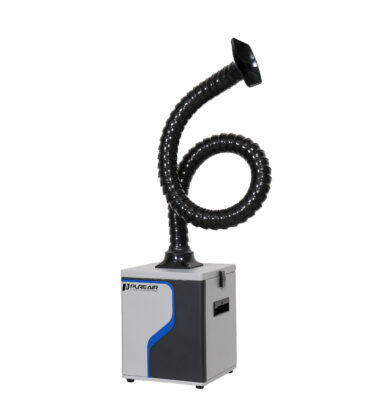

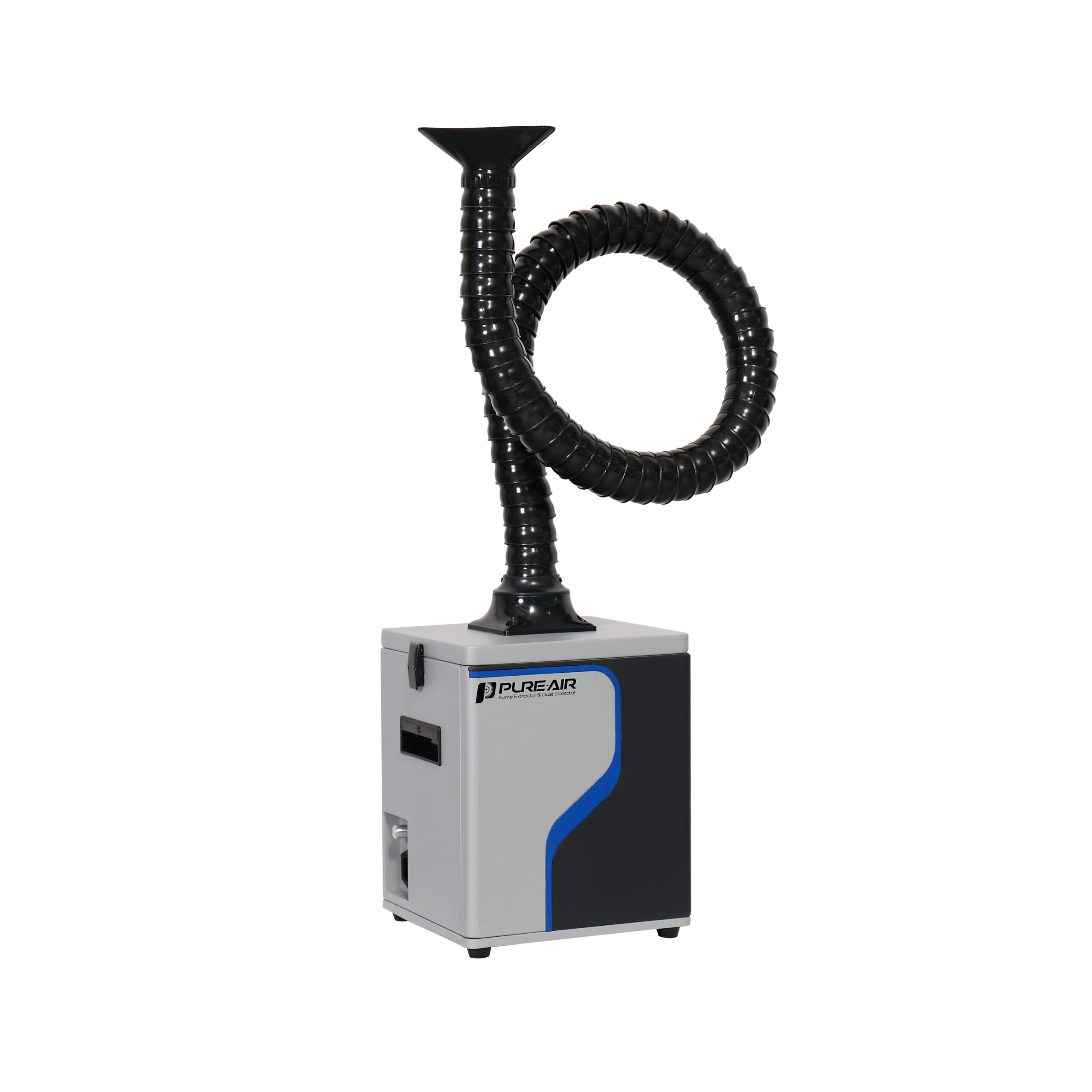

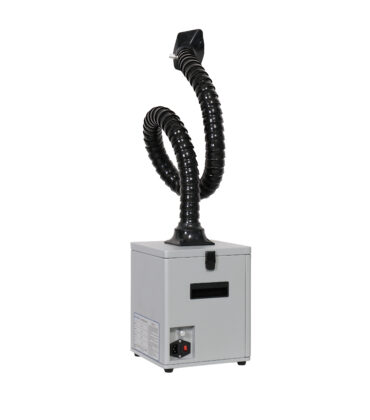

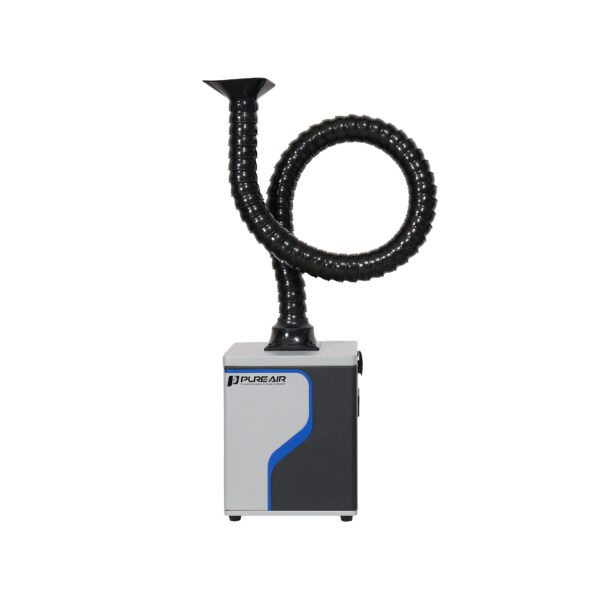

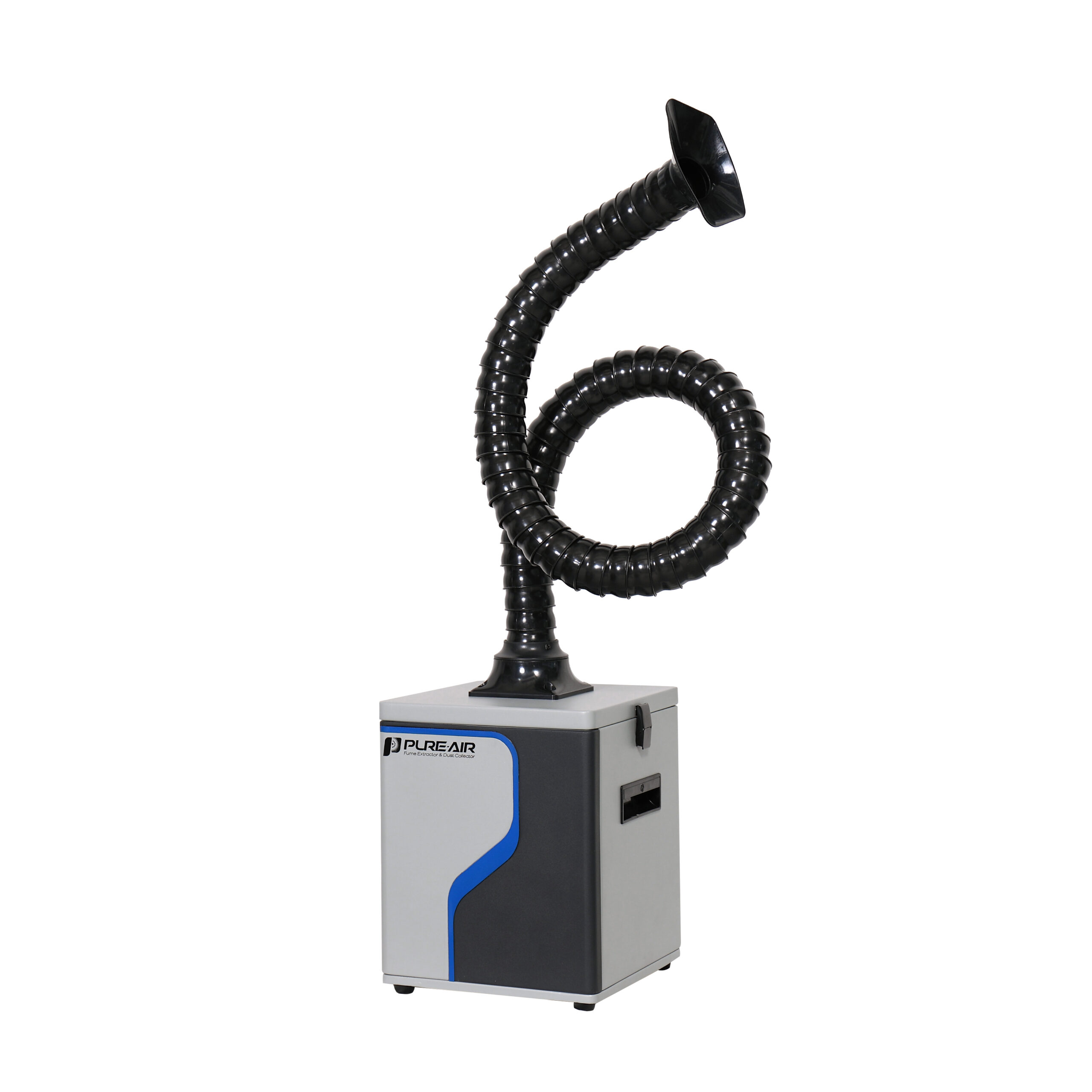

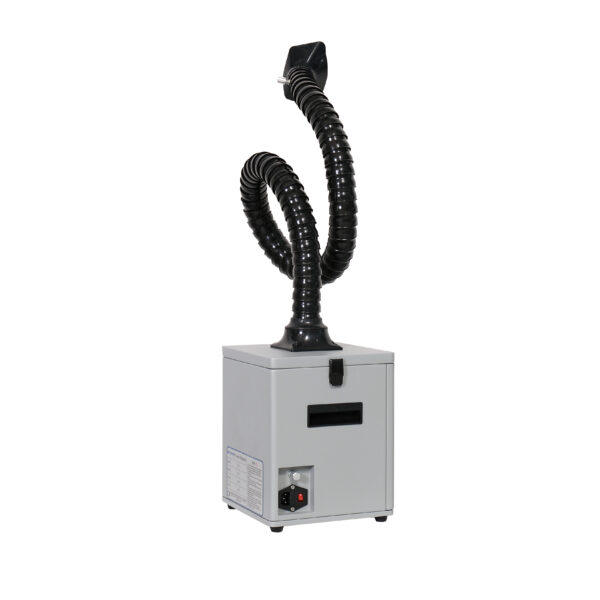

The PURE-AIR FS Series is our high-performance and cost-efficient solution. This unit has been designed to be easily relocated and simple to install due to its compact size. This adaptable machine can provide operator safety and flexibility. With its split filter design this unit has been created to offer lost cost ongoing ownership. They would be an ideal choice for operations in the laser marking industries.
Key features
- Precision Nano-Particle Filtration
► Targeted Capture:
-7500Pa suction contains ultrafine aerosols (<0.1μm)
≥650m³/h airflow evacuates concentrated resin fumes
►Multi-Stage Purification:
Pre-filter traps polymer particulates
ULPA captures 99.99% of 0.12μm nanoparticles
Activated carbon neutralizes styrene/formaldehyde/VOCs
- AM-Optimized Intelligence
► Real-time VOC/PM0.1 monitoring
► Automated filter health diagnostics
► Tool-free cartridge swaps in 90 seconds
► RS-485/MQTT protocols for printer integration
- Workspace-Integrated Design
► Compact vertical profile fits enclosed printers
► 30,000-hour maintenance-free operation (≤65dB)
► Chemical-resistant components
► 40% lower lifecycle costs vs. conventional systems
Table parameters：
| Model | PA-FS300 | PA-FS500 | PA-FS800 | PA-FS1600 | PA-FS2400 | |
| Airflow | 300m³/hr | 500m³/hr | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 3700Pa | 10000Pa | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 0.35kw | 1.1kw | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||||
| Filter | Pre filter | F9 deeppleat filter (95%@0.9um, surface media area 12m² – 30m² approx) | ||||
| Main filter | H14 deeppleat filter (99.997% @0.3um) | |||||
| Treated activated carbon (Weight 12-30kgs approx) | ||||||
| Noise level * | < 58dBA | < 60dBA | < 63dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 560*310*635mm | 500*562*1040mm | 500*562*1040mm | 670*769*1356mm | 750*907*1341mm | |
| Weight | 35kg | 83kg | 86kg | 185kg | 205kg | |
| Inlet size | 50mm / 75mm | 75mm / 100mm | 100mm / 125mm | 150mm | 200mm | |
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||||
| * At typical operating speed testing data. | ||||||
