Description

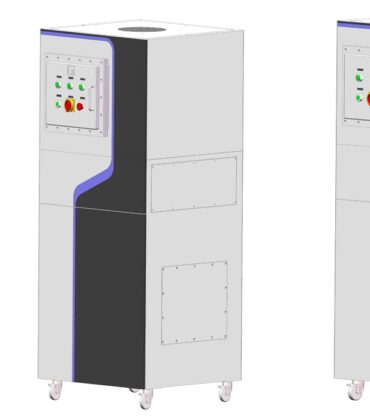

[PURE-AIR] Dust purification equipment is equipped with -10000Pa hurricane negative pressure + composite filter element, 0.3 micron metal dust interception rate of 99.99%, overcomes the problem of nickel-based alloy cladding dust adhesion, and purifies the air to meet aerospace standards!
Applicable scenarios: Aircraft engine blade repair, high-speed rail wheel pair plasma cladding, wind turbine blade coating regeneration.
Key features
- Cladding smoke killer system
- Pre-separation layer: capture 80% of high-temperature metal smoke, and extend the filter life by 2 times
- Patented pulse cleaning: synchronous cleaning of filter cartridges, 350% higher efficiency than traditional ones
- Mobile purification fortress
- Military-grade silent design + 360° impact-resistant casters, rapid deployment of cladding production line
- AI air volume compensation: automatic matching of suction force, adapting to blade surface repair conditions
- Zero-cost intelligent operation and maintenance
- Quick-disassembly module: single-person core replacement in 3 minutes, maintenance cost reduced by 60%
- RS-485 interface: linkage cladding robot synchronous operation
- Titanium alloy vortex fan: 30,000 hours maintenance-free, 7×24 hours continuous operation
Table parameters：
| Application conditions | Processing materials | Laser Cladding: Alloy Materials. | ||||
| Working format | Small workpiece / Narrow Spaces | Semi-enclosed / enclosed workstation | ||||

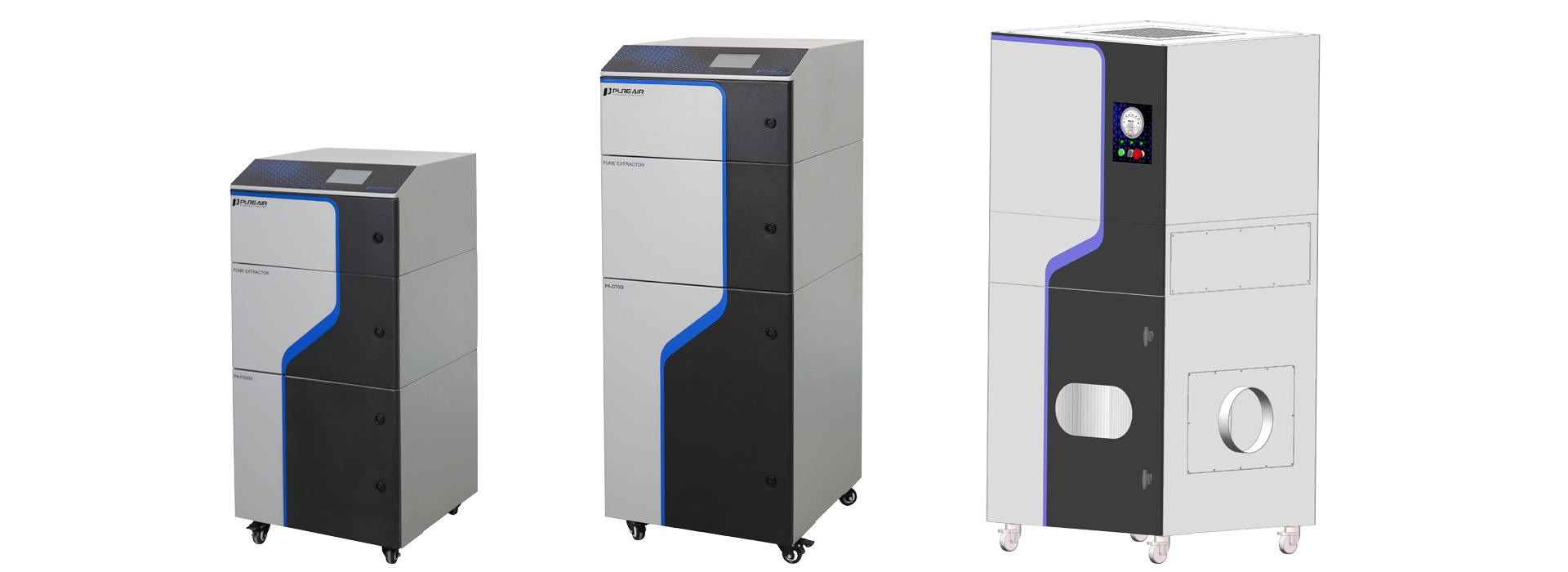

| Model | PA-D800 | PA-D1600 | PA-D2400 | PA-D5000 | PA-D6000 | |
| Airflow | 800m³/hr | 1600m³/hr | 2400m³/hr | 5000m³/hr | 6000m³/hr | |
| Pressure | 10000Pa | 10000Pa | 10000Pa | 3200Pa | 3500Pa | |
| Rated power | 1.3kw | 2.3kw | 3.5kw | 5.5kw | 7.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | 220v/ 380v / 415v / 440v, 3ph, 50/60Hz | ||||
| Filter | Pre filter | Flame retardant PTFE cartridge filter | PTFE cartridge filter / Flame retardant PTFE cartridge filter (Optional) | |||
| Main filter | H14 deeppleat filter (99.997% @0.3um) | Treated activated carbon (Optional) | ||||
| Noise level * | < 63dBA | < 65dBA | < 68dBA | < 75dBA | < 78dBA | |
| Dimensions (W*D*H) | 500*597*1296mm | 670*794*1570mm | 750*907*1564mm | 950*903*2015mm | 1390*952*2086mm | |
| Weight | 86kg | 180kg | 200kg | 260kg | 600kg | |
| Inlet size | 100mm / 125mm | 150mm | 200mm | 250mm | 300mm | |
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||||
| * At typical operating speed testing data. | ||||||
