Description

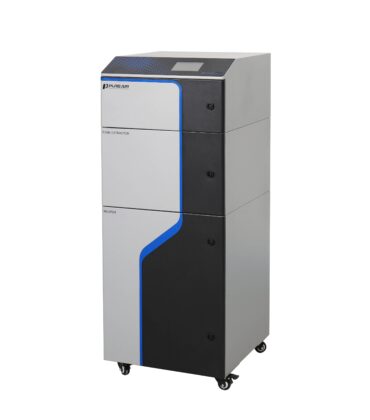

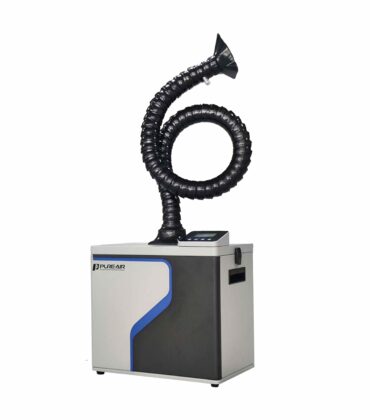

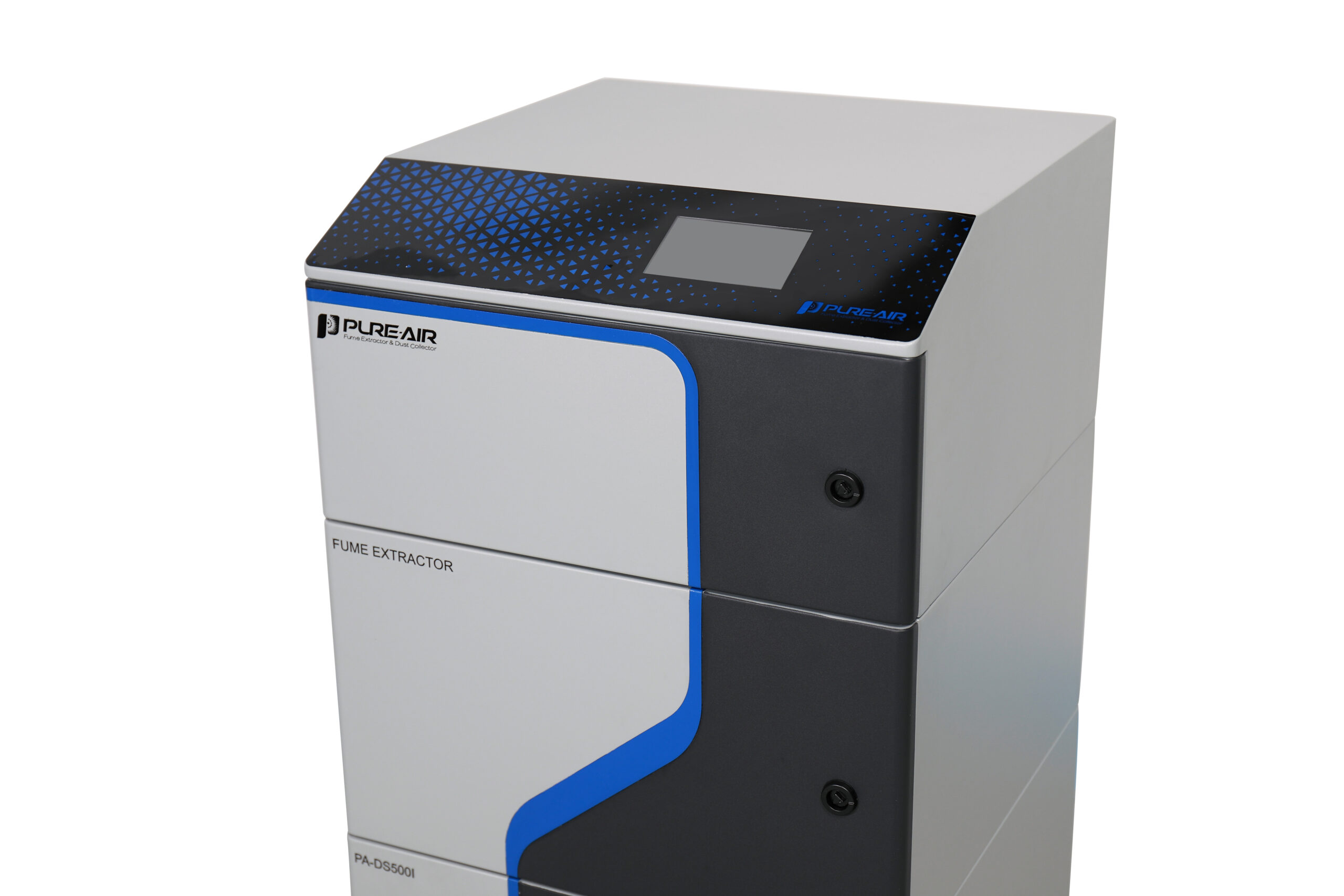

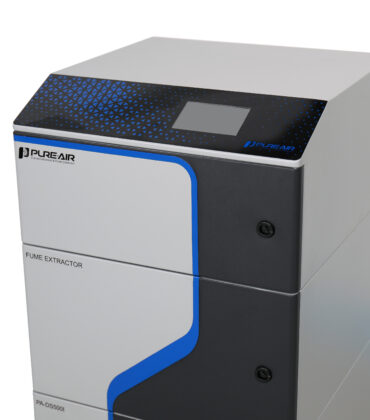

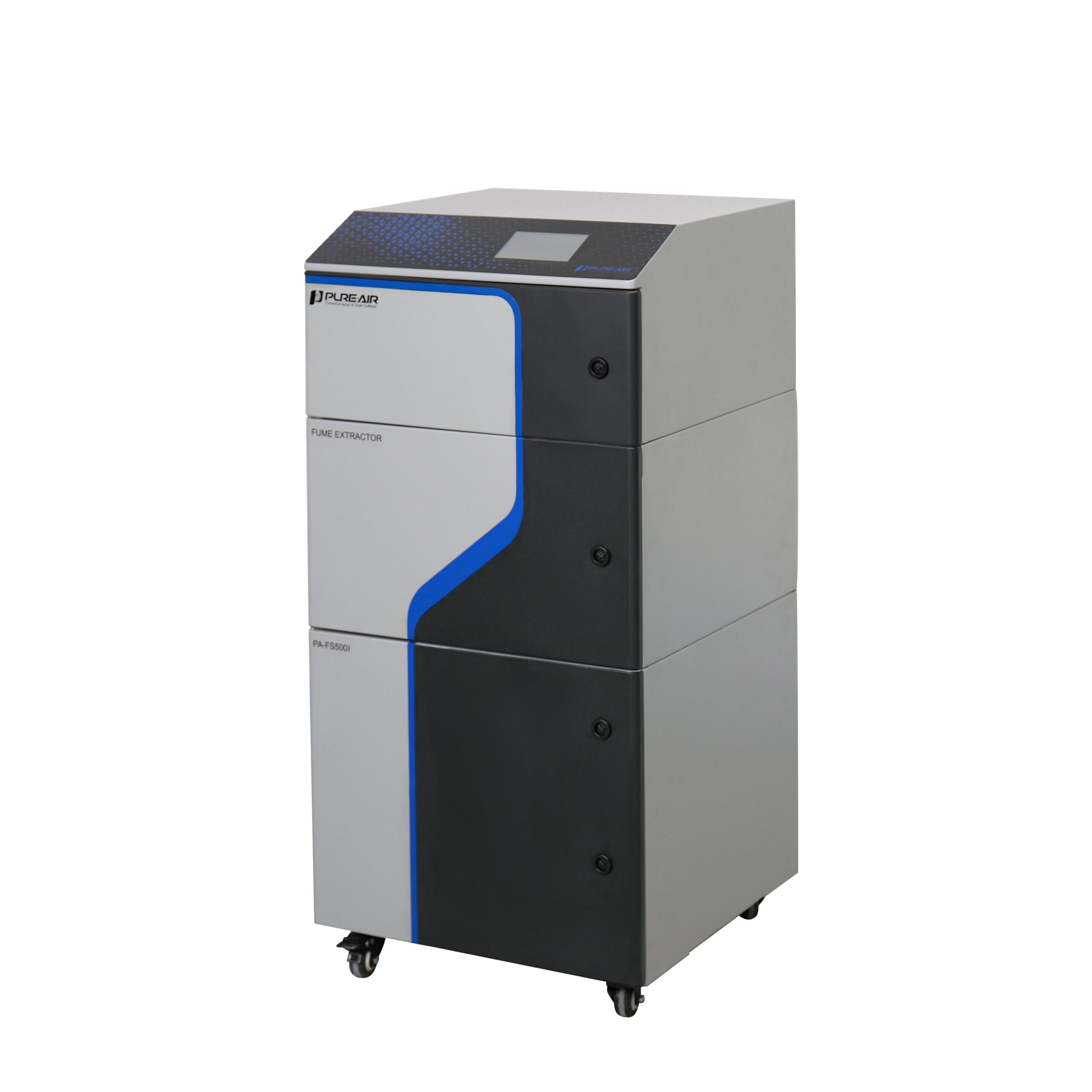

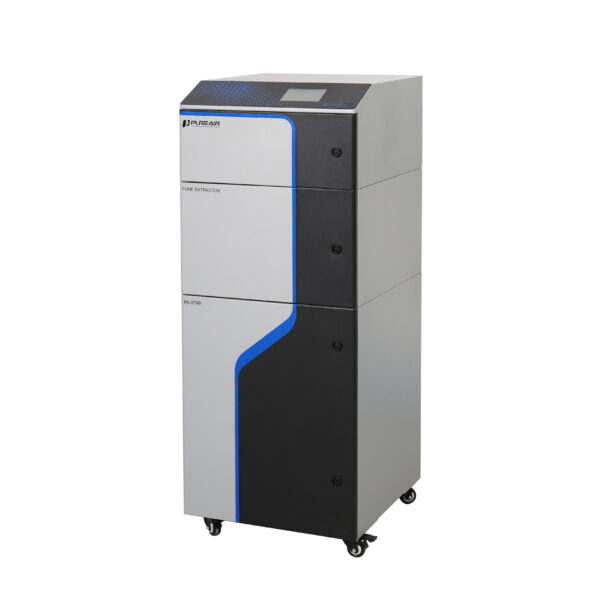

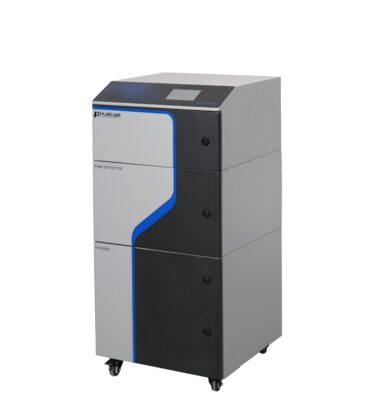

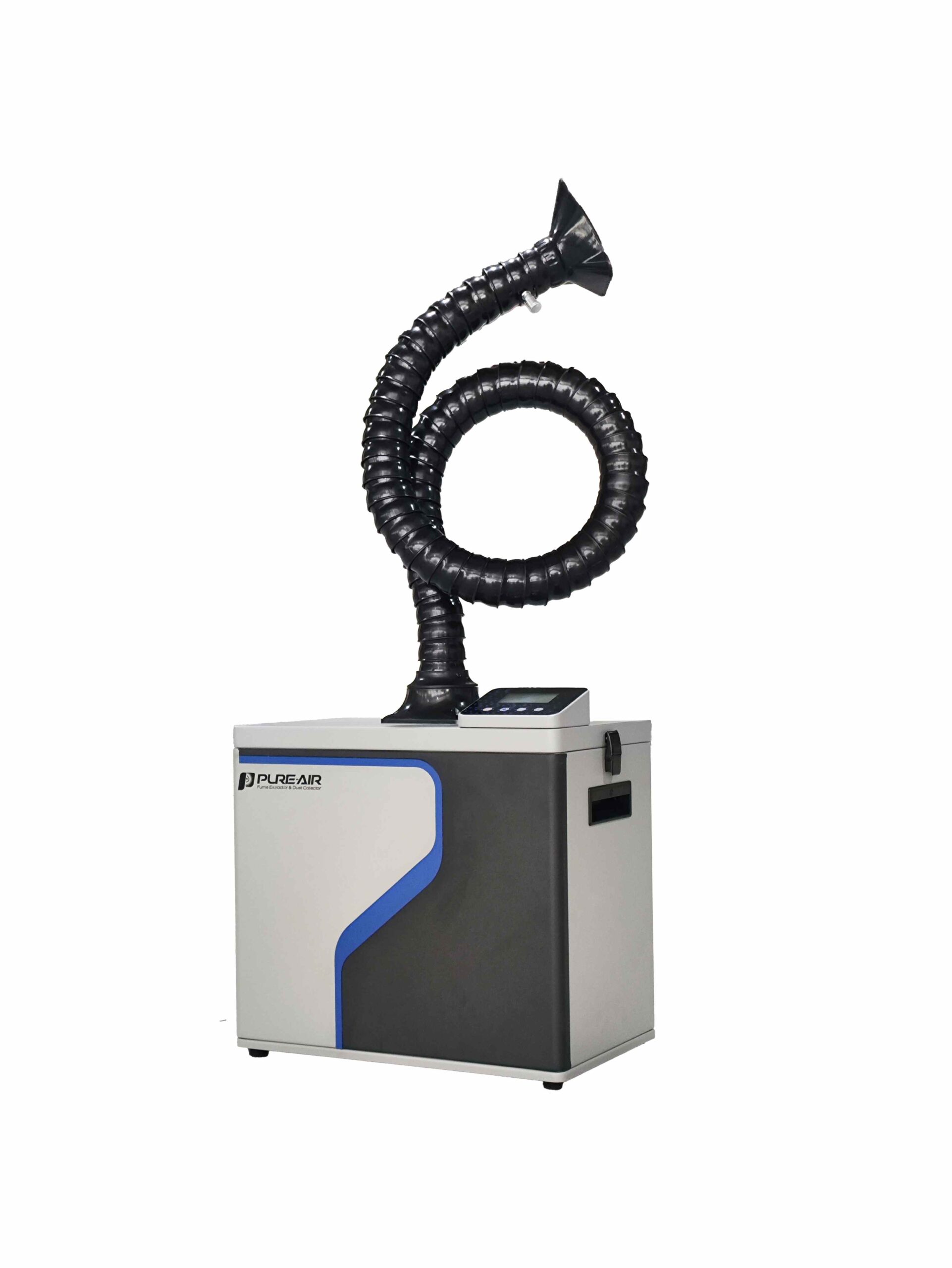

[PURE-AIR] Laser welding fume purification equipment, 0.3 micron welding fume interception rate 99.99%, accurately capture zinc/chromium/nickel and other heavy metal aerosols!
Applicable scenarios:
New energy battery welding, stainless steel precision parts welding, multi-station dust removal for automobile body-in-white.
Key features
- Nano-level sealing purification
- A variety of high-precision filter elements: anti-high temperature metal smoke adhesion, life is extended by 2 times
- Double pulse cleaning system: automatically shake off welding slag every 10 seconds, 320% more efficient than traditional
- Full-station intelligent adaptation
- Heavy-duty universal wheels, 15 seconds to switch single-station/robotic arm workstation
- Air volume sensing: automatic matching suction, covering spot welding/continuous welding conditions
- Zero operation and maintenance cost revolution
- Modular quick-release filter element: replacement cost is reduced by 55%, 1 person completes maintenance in 3 minutes
- RS-485 interface: synchronous start and stop of linked welding robotsCast aluminum vortex fan: 35,000 hours maintenance-free, 7×24 hours continuous operation
Table parameters：
| Application conditions | Processing materials | Laser etching / scribing / drilling: solar cells, PCB, glass, ceramics, etc. | ||||||
| Working format | Single-station small batch production | Production line mass production | ||||||
| Model | PA-D200 | PA-D250 | PA-D350 | PA-D500 | PA-D800 | PA-D1600 | PA-D2400 | |
| Airflow | 200m³/hr | 250m³/hr | 350m³/hr | 500m³/hr | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 2200Pa | 2700Pa | 3700Pa | 10000Pa | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 0.15kw | 0.2kw | 0.35kw | 1.1kw | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||||||
| Filter | Pre filter | F9 accordion filter bag (95%@0.9um) | Flame retardant PTFE cartridge filter | |||||
| Main filter | / | H14 deeppleat filter (99.997% @0.3um) | ||||||
| Noise level * | < 55dBA | < 55dBA | < 60dBA | < 65dBA | < 63dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 250*330*388mm | 360*510*555mm | 500*597*1296mm | 670*794*1570mm | 750*907*1564mm | |||
| Weight | 10kg | 22KG | 23.5KG | 25KG | 86kg | 180kg | 200kg | |
| Inlet size | 50mm / 75mm | 75mm / 100mm | 100mm / 125mm | 150mm | 200mm | |||
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||||||
| * At typical operating speed testing data. | ||||||||
