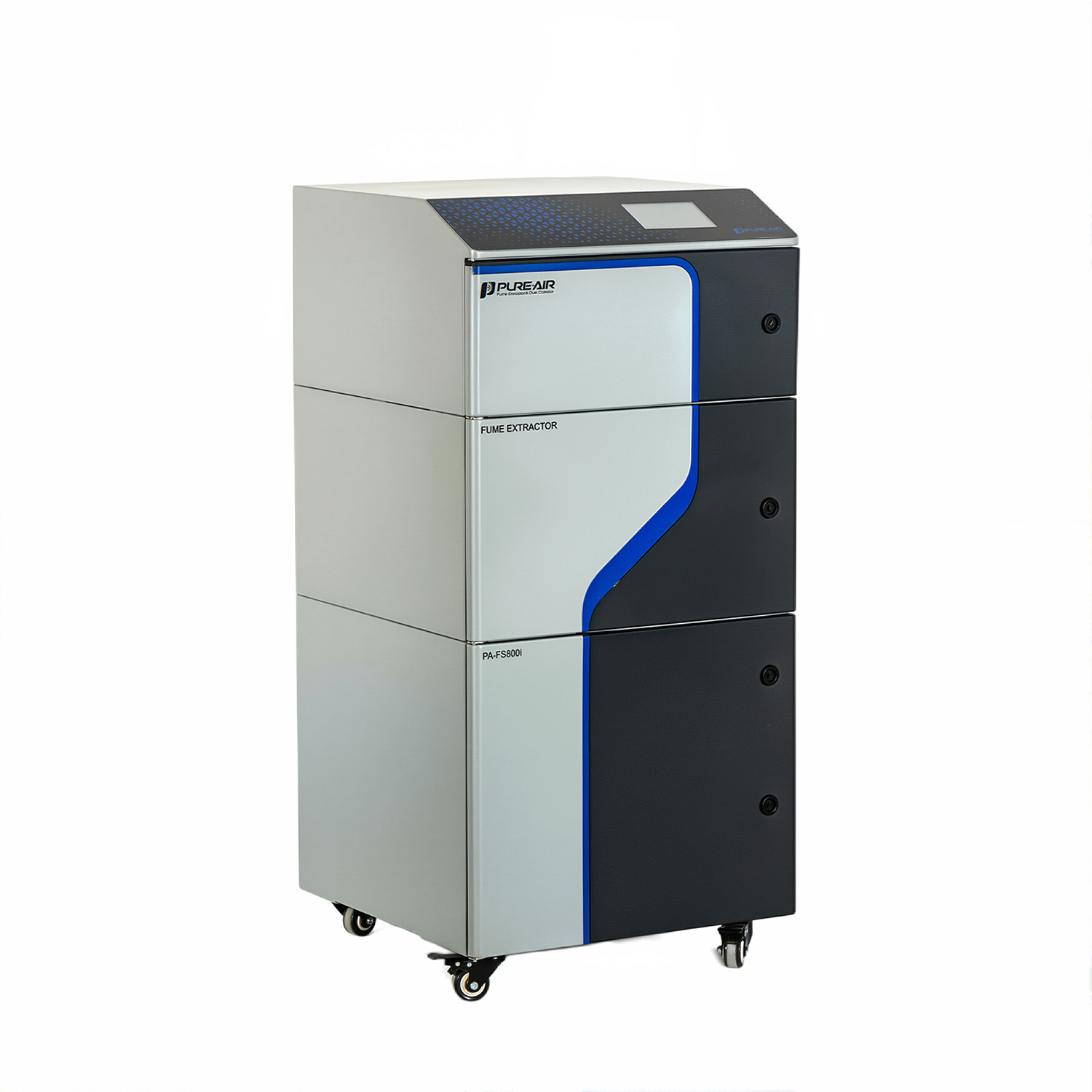

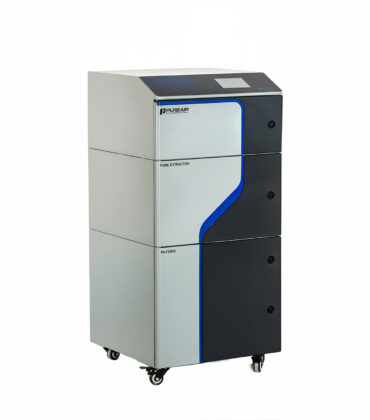

FS-i Series Lab Testing Fume Extractor

The PURE-AIR FS-i Series lab testing fume extractor provides high-efficiency purification for pharmaceutical, forensic, and biomedical research labs. With 99.99% filtration and a compact, intelligent design, it safeguards sensitive instruments and maintains compliance with strict air quality standards.

Description

Advanced Fume Extraction for Laboratory Precision

The FS-i Series lab testing fume extractor delivers superior air purification for laboratories handling chemical vapors, acidic fumes, and nano-particulates. It helps research facilities maintain a clean environment and ensures analytical accuracy by preventing airborne interference.


Ultra-High Negative Pressure for Maximum Efficiency

Equipped with an ultra-high negative pressure system, this extractor captures harmful substances at the source. Its efficient air circulation protects both researchers and delicate testing equipment from contamination.


Multi-Layer Filtration with 99.99% Purification

The extractor integrates multi-stage filters designed to remove even the smallest particles. From volatile organic compounds to fine dust, it achieves 99.99% filtration efficiency, guaranteeing safety and compliance in critical lab environments.


Intelligent Purification System for Smarter Operations

With its intelligent monitoring and automatic adjustment features, the FS-i Series ensures optimal airflow at all times. Researchers can focus on testing while the system continuously adapts to changing air quality levels.


Compact and Space-Saving Industrial Design

Designed for modern laboratories, the FS-i Series saves over 40% workspace without compromising performance. Its portable form allows flexible placement even in crowded environments, maximizing operational efficiency.


Reliable Protection for Sensitive Applications

The extractor plays a critical role in pharmaceutical, biomedical, and forensic research. It prevents cross-contamination, safeguards delicate instrumentation, and ensures a safe, compliant workspace for researchers.


Versatile Applications Across Research Environments

From analytical testing to chemical experiments, the FS-i Series lab testing fume extractor supports diverse laboratory settings. Biotech firms, universities, forensic labs, and pharmaceutical companies widely adopt it.


Durable Construction with Low Maintenance

Built with industrial-grade materials, the system ensures long-term reliability and stability. Its modular filtration components are easy to replace, reducing maintenance downtime and operating costs for laboratories.

Key features

► Ultra-slim profile (40% space savings) fits between instruments
► Vibration-dampened casters: 5-second repositioning

► VortexFlow Capture:
10-18KPa negative pressure contains spills/plumes in 0.3s
►Triple-Precision Filtration:
Pre-filter traps particulates
HEPA H14 captures 99.995% of 0.1μm contaminants
Molecular-sieve carbon neutralizes acids/formaldehyde
►AutoFlow Compensation:
Maintains airflow during filter loading

► 7″ Touchscreen: Real-time VOC/PM1.0/humidity monitoring
► Dual alarms: Filter life + thermal cut-off
► RS-485/LAN ports for LIMS integration
► Hermetic cartridge swaps (50% lower consumable costs)

► ≤55dB operation (no instrument interference)
► 30,000-hour maintenance-free
► Chemical-resistant components
► 15-60°C operational range

Table parameters:

ModelPA-FS400i  PA-FS500iPA-FS800iPA-FS1600iPA-FS2400i
Airflow 400m³/hr 500m³/hr 800m³/hr 1600m³/hr 2400m³/hr
Pressure8000Pa10000Pa10000Pa10000Pa10000Pa
Rated power1.0kw1.1kw1.3kw2.3kw3.5kw
Input voltage / Frequency90v-110v / 210-257v, 1ph, 50/60Hz
Control systemPURE-AIR INTELLIGENT PURIFICATION SYSTEM (PIPS)
Air quality sensor (Optional)PM1.0 / VOC / HCL / O3 / Odor
FilterPre filterF9 deeppleat filter (95%@0.9um, surface media area 12m² – 30m² approx)
Main filterH14 deeppleat filter (99.997% @0.3um)
Treated activated carbon (Weight 12-30kgs approx)
Noise level *< 60dBA < 60dBA < 63dBA< 65dBA< 68dBA
Dimensions (W*D*H)400*482*1030mm500*562*1040mm500*562*1040mm670*769*1356mm750*907*1341mm
Weight50kg83kg86kg185kg205kg
Inlet size75mm / 100mm75mm / 100mm100mm / 125mm150mm200mm
Cabinet constructionPowder coated mild steel / Brushed stainless steel
* At typical operating speed testing data.
