Description
Ultimate Laser Beauty Fume Extraction

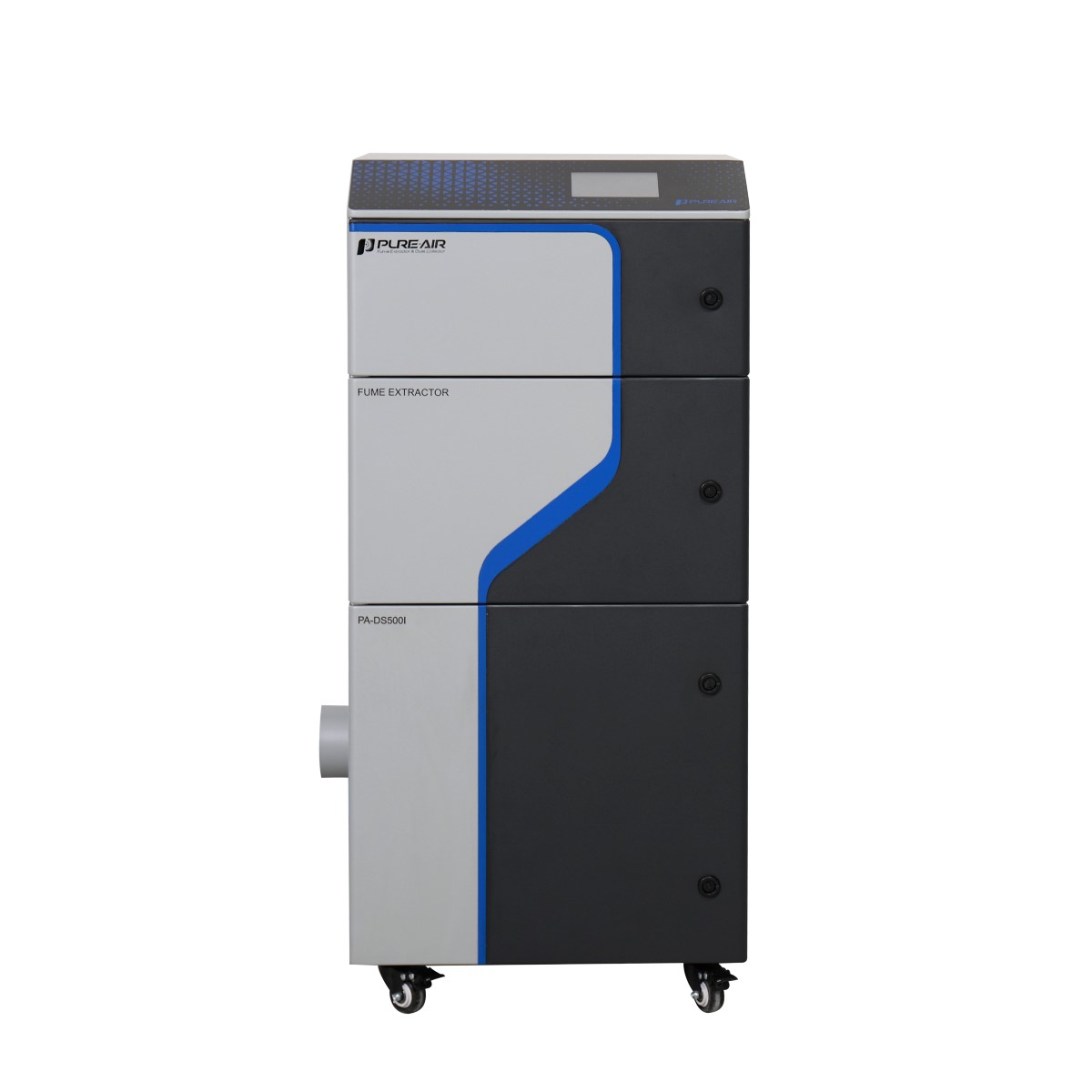

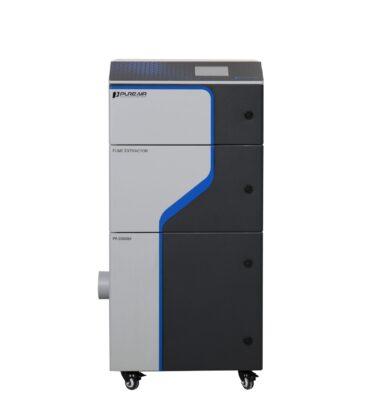

The PURE-AIR FS-i series laser beauty fume extractor is designed to eliminate harmful laser plumes generated during hair removal, skin resurfacing, and tattoo removal. Equipped with an ultra-high negative pressure motor, it captures smoke, odors, and bio-aerosols at the source. Clinics and aesthetic centers benefit from a safer, cleaner environment while ensuring compliance with strict medical safety standards.
99.99% Multi-Layer Filtration
Our advanced multi-stage filtration system combines HEPA, activated carbon, and high-efficiency chemical filters to remove up to 99.99% of hazardous particles and odors. The laser beauty fume extractor effectively captures volatile organic compounds and tiny aerosols, protecting both practitioners and clients from health risks. The durable filters ensure long-lasting performance and low maintenance costs.
Intelligent Purification System
Equipped with a smart purification system, the FS-i series adjusts airflow automatically based on real-time fume concentration. The high-resolution LED display shows filtration status, airflow speed, and maintenance alerts at a glance. With simple touch controls and intelligent monitoring, operators can focus on treatments without worrying about air quality.
Compact, Space-Saving Design
Designed with aesthetics and practicality in mind, the FS-i series saves up to 40% more space compared to traditional fume extractors. Its compact body easily fits into modern clinics and treatment rooms without compromising extraction power. The lightweight build and easy mobility make it ideal for dynamic treatment environments.
Reliable Safety and Compliance
The PURE-AIR FS-i laser beauty fume extractor meets international safety and filtration standards, making it a trusted solution for medical institutions and aesthetic clinics worldwide. With strong IP-grade sealing and efficient airflow control, it prevents harmful particles from escaping, ensuring a safe and compliant workspace.
Wide Applications Across Aesthetic Treatments
This extractor is suitable for various beauty and medical procedures, including laser hair removal, carbon laser facials, wrinkle reduction, and tattoo removal. It supports multiple treatment environments, from dermatology clinics to cosmetic surgery centers and wellness spas, providing clean air wherever laser procedures take place.
Core advantages
- Clinic-Optimized Design
►Ultra-slim profile (40% space savings) fits beside aesthetic devices
►Silent-roll casters enable 5-second repositioning between treatment rooms
- Surgical Air Safety
► VortexFlow™ Capture:
10-18KPa medical-grade suction contains bio-contaminants in 0.3s
►Triple-Med Filtration:
Pre-filter traps coarse debris
HEPA H14 blocks 99.995% of 0.1μm particles
VaporLock Carbon neutralizes formaldehyde/VOCs
►AutoFlow Compensation: Maintains suction during procedures
- Smart Clinic Integration
► 7″ Touchscreen: Real-time PM1.0/VOC/ozone monitoring
► Dual alerts: Filter life + thermal protection
► One-touch synchronization with laser handpieces
► Tool-free cartridge swaps between clients (50% lower upkeep)
- Critical Performance
► ≤55dB silent operation (no procedure disruption)
► 30,000-hour maintenance-free
► Medical-grade components
► 15-60°C operational range
Table Parameters：
| Model | PA-FS400i | PA-FS500i | PA-FS800i | PA-FS1600i | PA-FS2400i | |
| Airflow | 400m³/hr | 500m³/hr | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 8000Pa | 10000Pa | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 1.0kw | 1.1kw | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||||
| Control system | PURE-AIR INTELLIGENT PURIFICATION SYSTEM (PIPS) | |||||
| Air quality sensor (Optional) | PM1.0 / VOC / HCL / O3 / Odor | |||||
| Filter | Pre filter | F9 deeppleat filter (95%@0.9um, surface media area 12m² – 30m² approx) | ||||
| Main filter | H14 deeppleat filter (99.997% @0.3um) | |||||
| Treated activated carbon (Weight 12-30kgs approx) | ||||||
| Noise level * | < 58dBA | < 60dBA | < 63dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 560*310*635mm | 500*562*1040mm | 670*769*1356mm | 750*907*1341mm | ||
| Weight | 35kg | 83kg | 86kg | 185kg | 205kg | |
| Inlet size | 75mm / 100mm | 75mm / 100mm | 100mm / 125mm | 150mm | 200mm | |
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||||
| * At typical operating speed testing data. | ||||||
