Description
Breathe safely through every solder joint

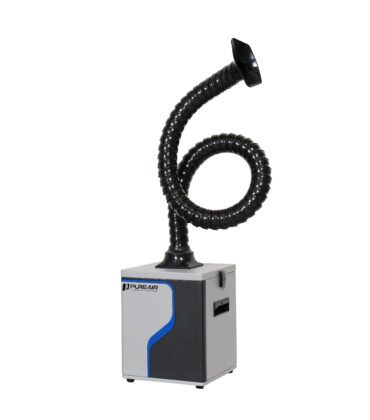

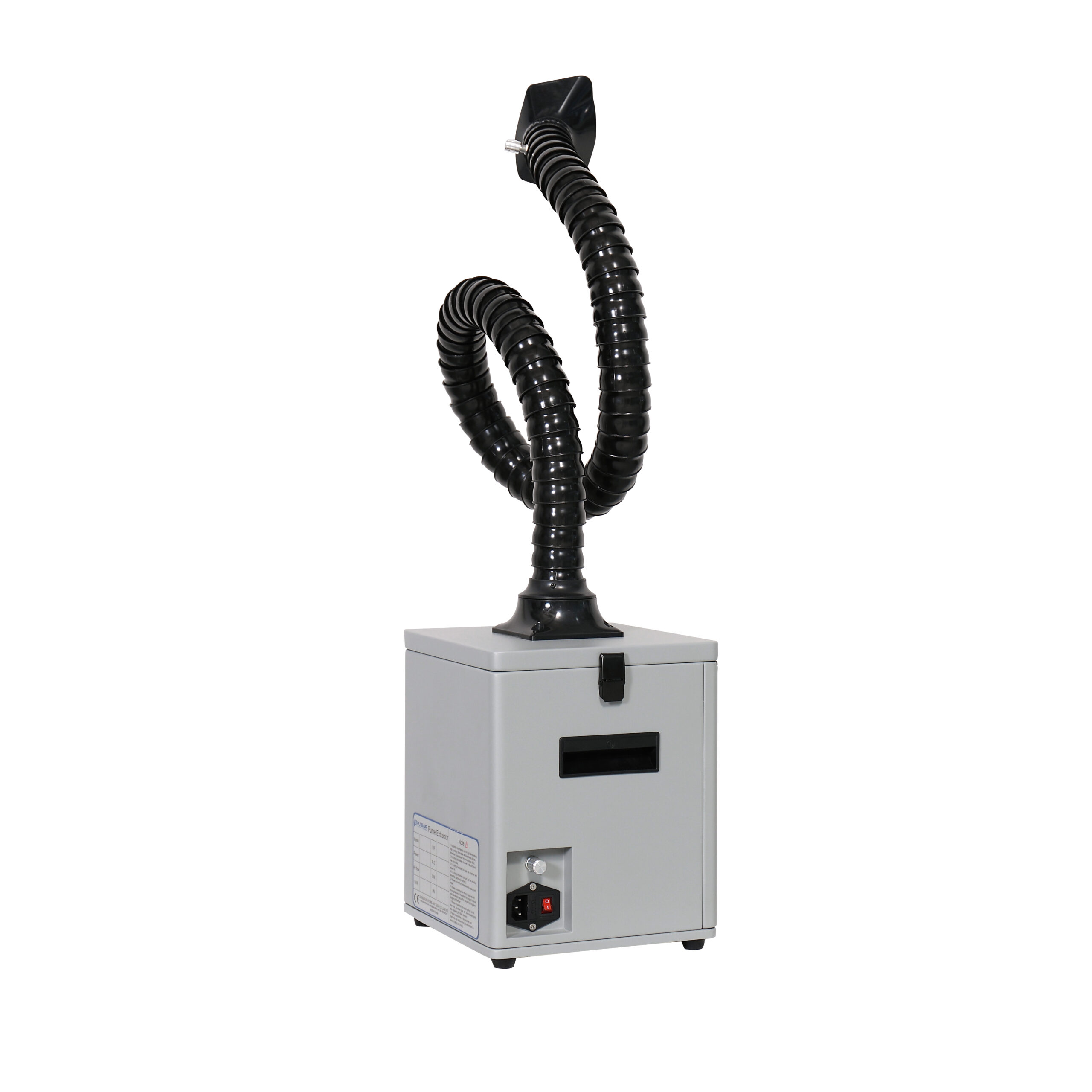

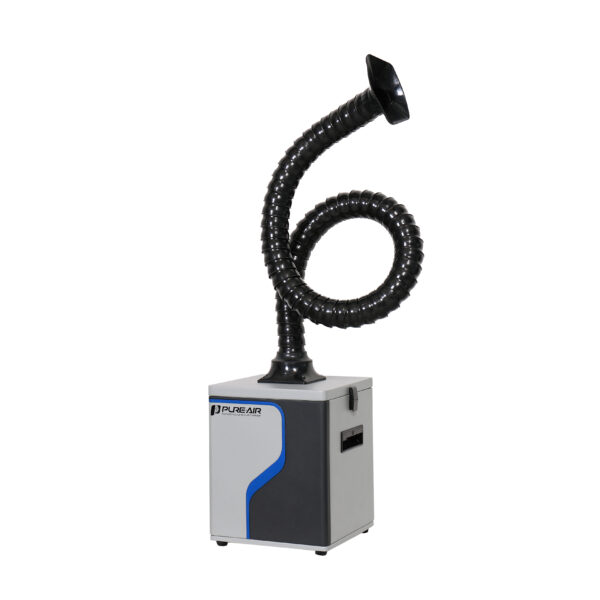

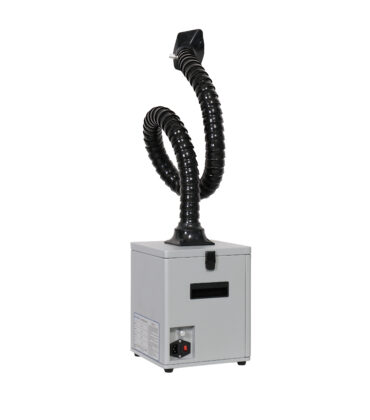

The PURE-AIR F series our high-performance and cost-efficient solution. This unit has been designed to be easily relocated and simple to install due to its compact size. This adaptable machine can provide operator safety and flexibility. With its split filter design this unit has been created to offer lost cost ongoing ownership.
Key features
- Precision Filtration
► Our multi-stage system combines HEPA filtration (capturing 99.99% of airborne contaminants down to 0.3μm) with deep-bed activated carbon to neutralize acidic gases, VOCs, and persistent soldering odors.
- Engineered for Soldering Workflows
► Compact, mobile units integrate seamlessly with workstations or robotic arms
► Whisper-quiet operation minimizes distraction in lab environments

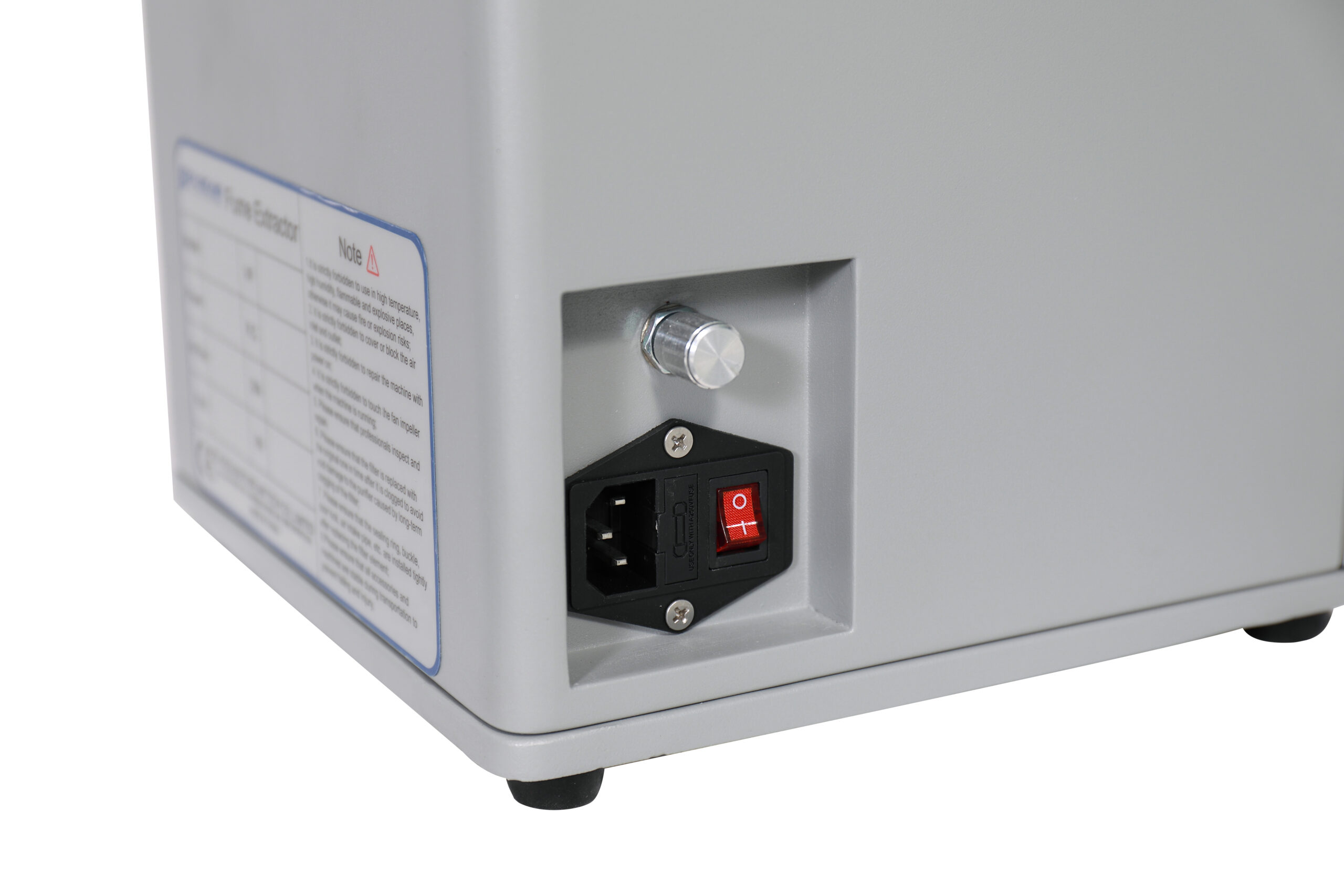

► Intuitive controls with filter saturation alerts reduce maintenance downtime

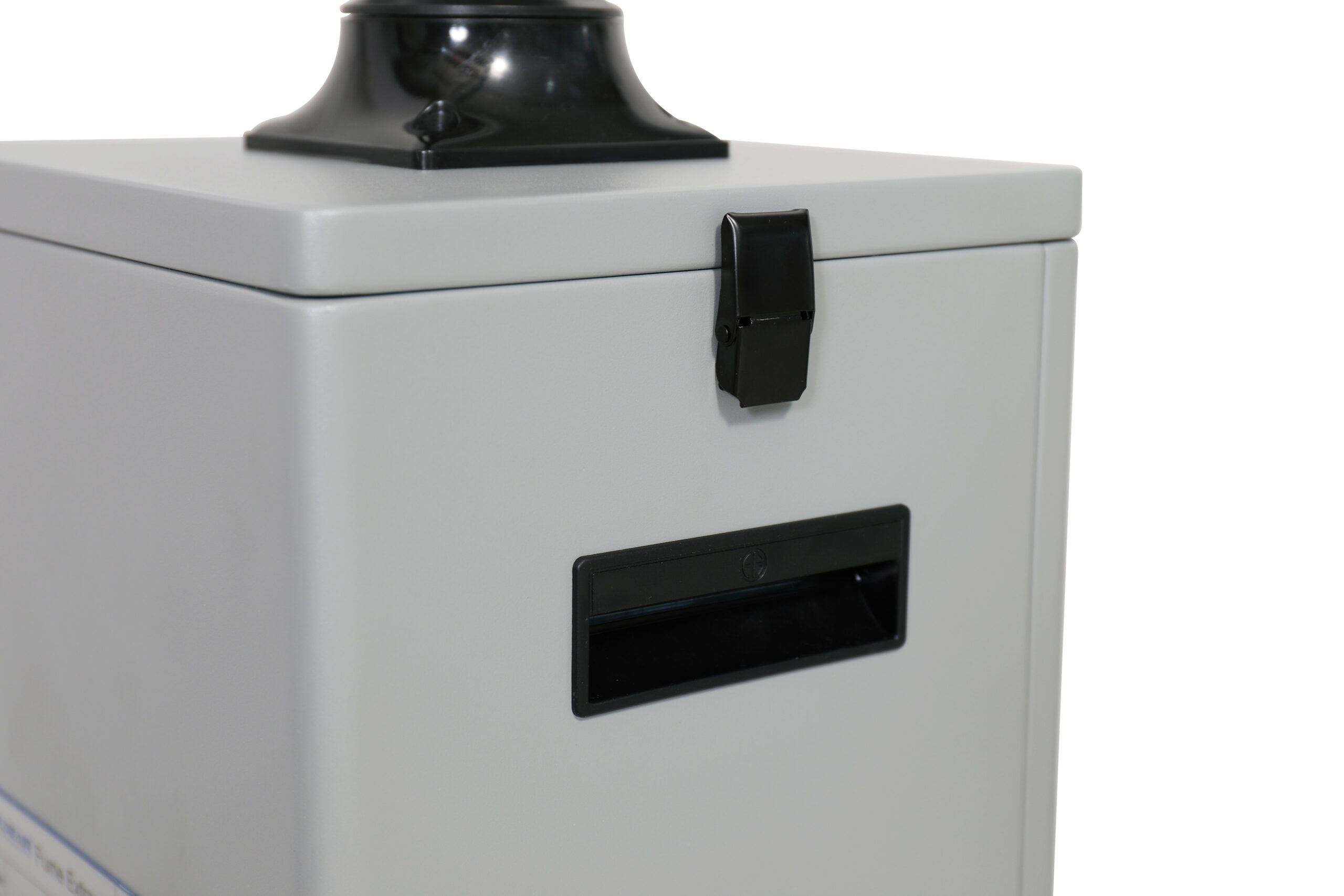

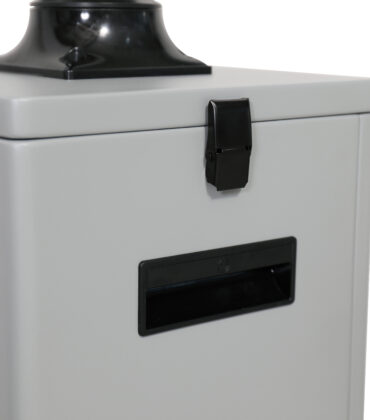

► Tool-free filter access cuts replacement time by 70%
- Proven Benefits
► Extends equipment lifespan by eliminating corrosive residues
► Meets ISO air quality standards
► Ergonomic designs optimize limited production floor space
Table parameters：
| Model | PA-F250s | PA-F350s | |
| Airflow | 250m³/hr | 350m³/hr | |
| Pressure | 2800Pa | 3700Pa | |
| Rated power | 0.2kw | 0.35kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | ||
| Filter | Pre filter | F5 pad (80%@1um) | |
| F9 deeppleat filter (95%@0.9um) | |||
| Main filter | H14 deeppleat filter (99.997% @0.3um) | ||
| Treated activated carbon | |||
| Noise level * | < 60dBA | < 63dBA | |
| Dimensions (W*D*H) | 430*250*412mm | 520*310*515mm | |
| Weight | 14.5kg | 20.5kg | |
| Inlet size | 50mm / 75mm | ||
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | ||
| * At typical operating speed testing data. | |||
