Description
Advanced Fume Purification System

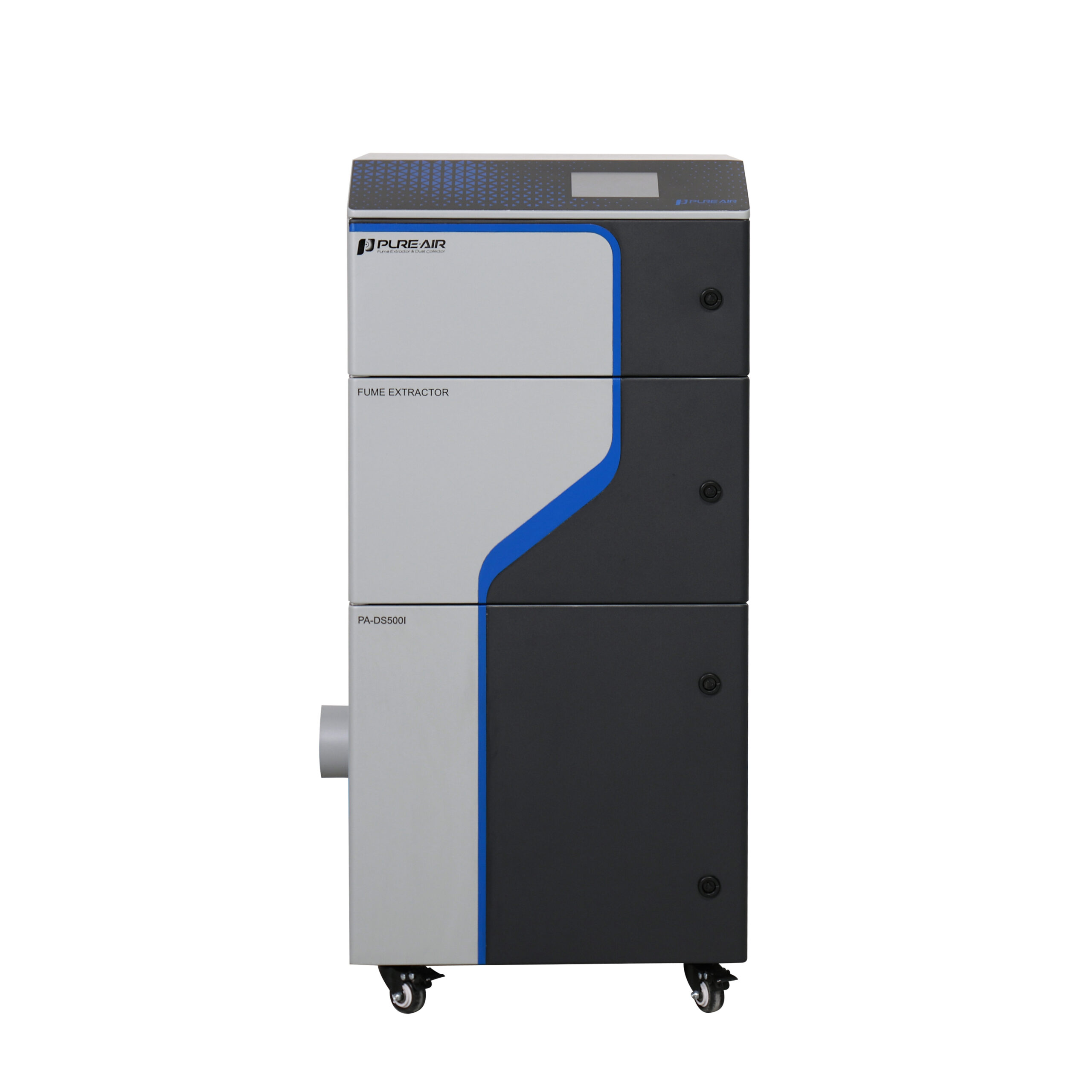

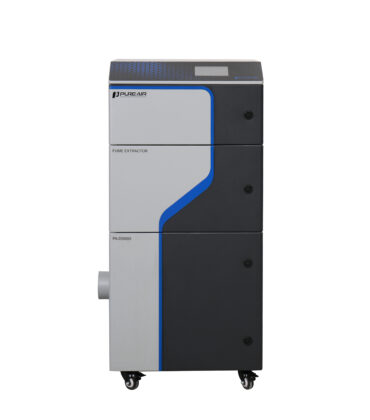

The PURE-AIR DS-i series reflow soldering fume extractor uses a new generation purification system (PIPS). It effectively removes flux vapors, metal oxides, and VOCs, ensuring a clean working environment for wave and reflow soldering applications.
Intelligent Control and Monitoring
Equipped with a smart touch screen display, the system shows real-time data such as airflow rate and filter condition. Operators can adjust parameters instantly, ensuring the extractor always works at peak performance and maintains workplace safety.
Remote Operation for Production Lines
This reflow soldering fume extractor supports remote monitoring and control, ideal for unmanned or automated lines. Any alarm or system fault is transmitted to central control systems, securing uninterrupted and efficient production.
High Efficiency and Durability
Designed for industrial use, the DS-i series combines high thermal resistance with long filter life. Its robust structure and strong airflow capacity ensure stable operation, making it suitable for demanding soldering environments.
ESG-Compliant and Reliable
PURE-AIR focuses on sustainable design while delivering reliable fume purification. The DS-i series supports ESG goals by reducing harmful emissions, improving worker safety, and ensuring compliance with modern environmental standards.
Key features
- Space-Optimized Architecture
► Ultra-compact, impact-resistant chassis fits congested PCB lines
► Modular design scales with production expansions
- High-Temperature Performance Engine
► Vortex Intensifier™ Technology: 10-18KPa negative pressure captures plumes in 0.3s (25% energy savings)
► Self-Regulating Suction: AI maintains consistent airflow despite filter loading
►Thermal-Proof Construction: Precision-balanced alloy impeller + 3mm cast volute (noise ≤50dB)
- Intelligent Command Hub
► 7″ Touchscreen: Live VOC/O₃/PM1.0 monitoring
► Auto-Pressure Compensation during filter loads
► RS-485/I/O ports for MES integration
► Thermal cut-off protection + OTA firmware updates
- Industrial-Strength Filtration
► 3X filter surface area (10-30m²) traps solder particulates
► Triple-barrier capture: Slag → HEPA (99.99% @ 0.3μm) → Activated carbon (acid gas/VOC neutralization)
► 90-second airtight filter swaps (50% lower consumable costs)
Table parameters：
| Model | PA-DS400i | PA-DS500i | PA-DS800i | PA-DS1600i | PA-DS2400i | |
| Airflow | 400m³/hr | 500m³/hr | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 8000Pa | 10000Pa | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 1.0kw | 1.1kw | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||||
| Control system | PURE-AIR INTELLIGENT PURIFICATION SYSTEM (PIPS) | |||||
| Air quality sensor (Optional) | PM1.0 / VOC / HCL / O3 / Odor | |||||
| Filter | Pre filter | F9 accordion filter bag (95%@0.9um) | ||||
| Main filter | H14 deeppleat filter (99.997% @0.3um) | |||||
| Treated activated carbon (Weight 12-30kgs approx) | ||||||
| Noise level * | < 58dBA | < 60dBA | < 63dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 450*482*941mm | 550*562*1091mm | 550*562*1091mm | 720*769*1389mm | 800*907*1374mm | |
| Weight | 45kg | 72kg | 75kg | 164.5kg | 201kg | |
| Inlet size | 50mm / 75mm | 75mm / 100mm | 100mm / 125mm | 150mm | 200mm | |
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||||
| * At typical operating speed testing data. | ||||||
