Description
Precision Purification Engineered for High-Temperatures. Safeguard your PCB production against occupational hazards while boosting ESG compliance.

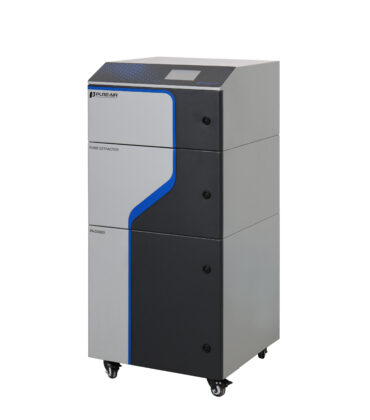

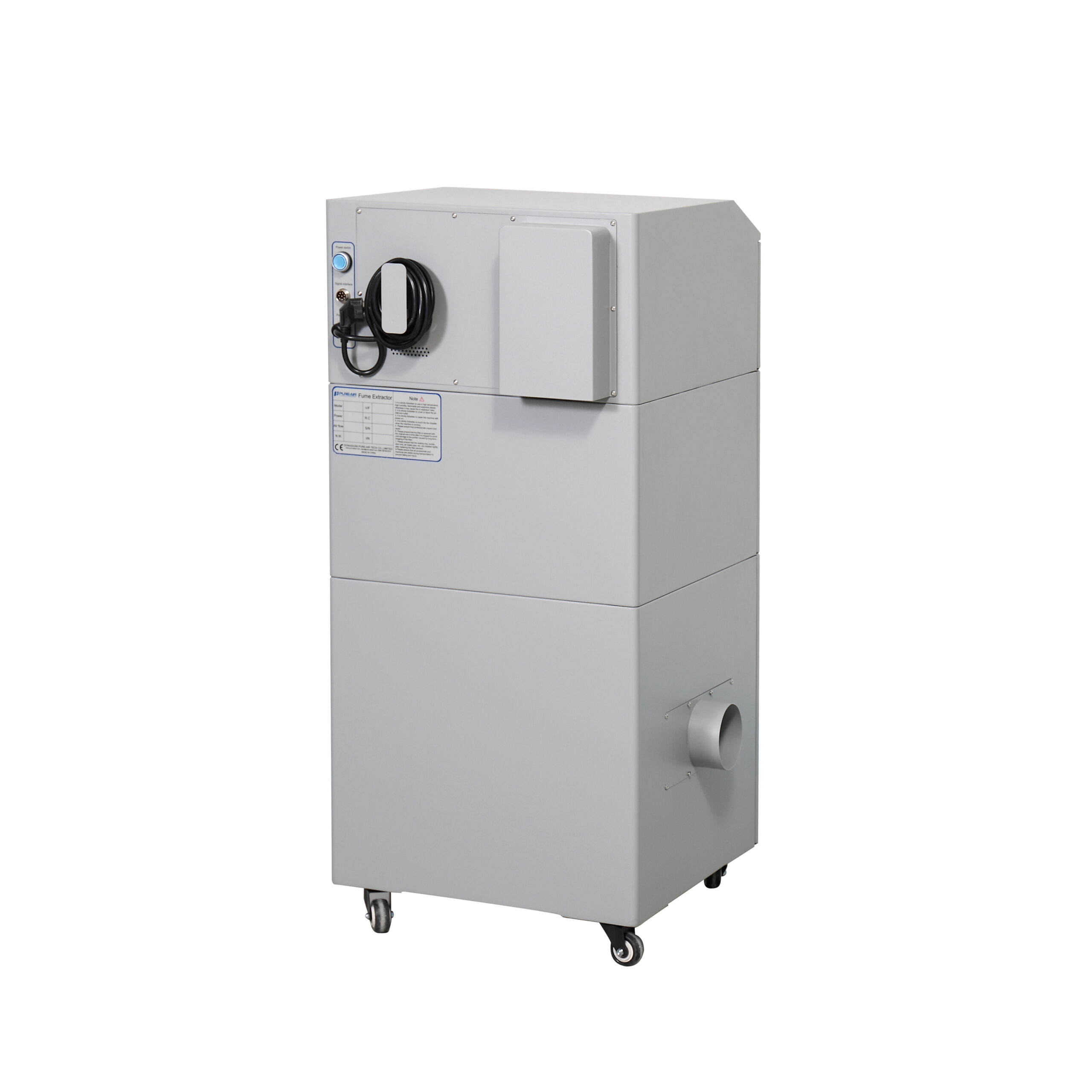

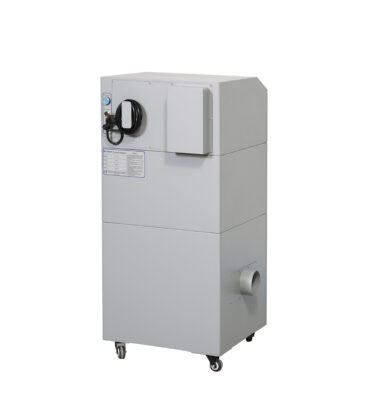

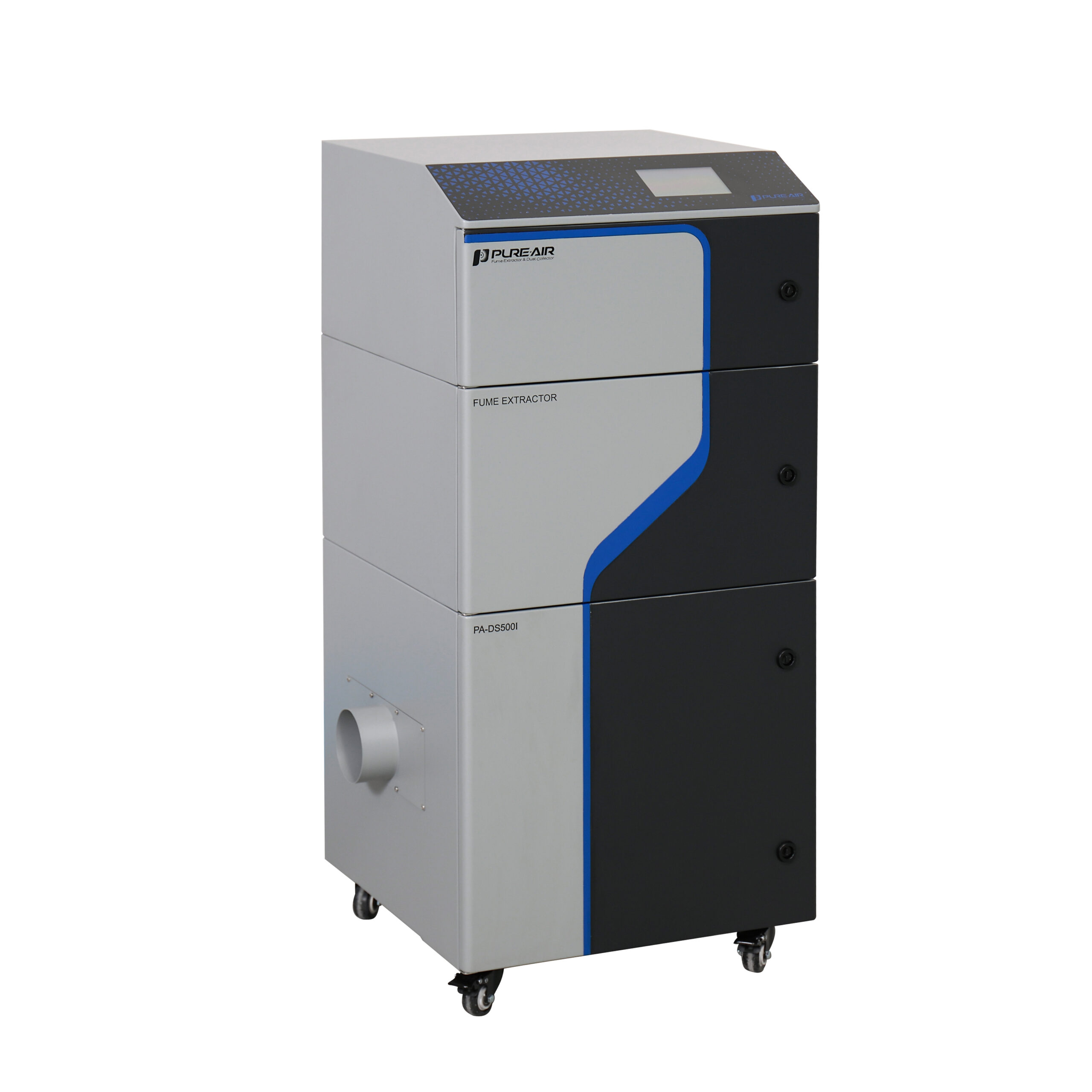

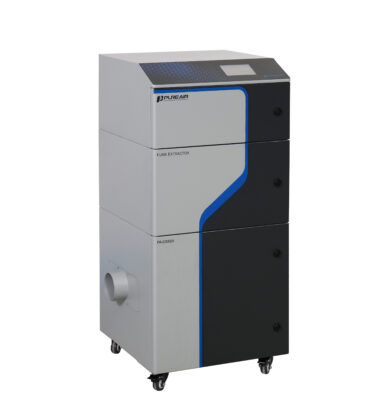

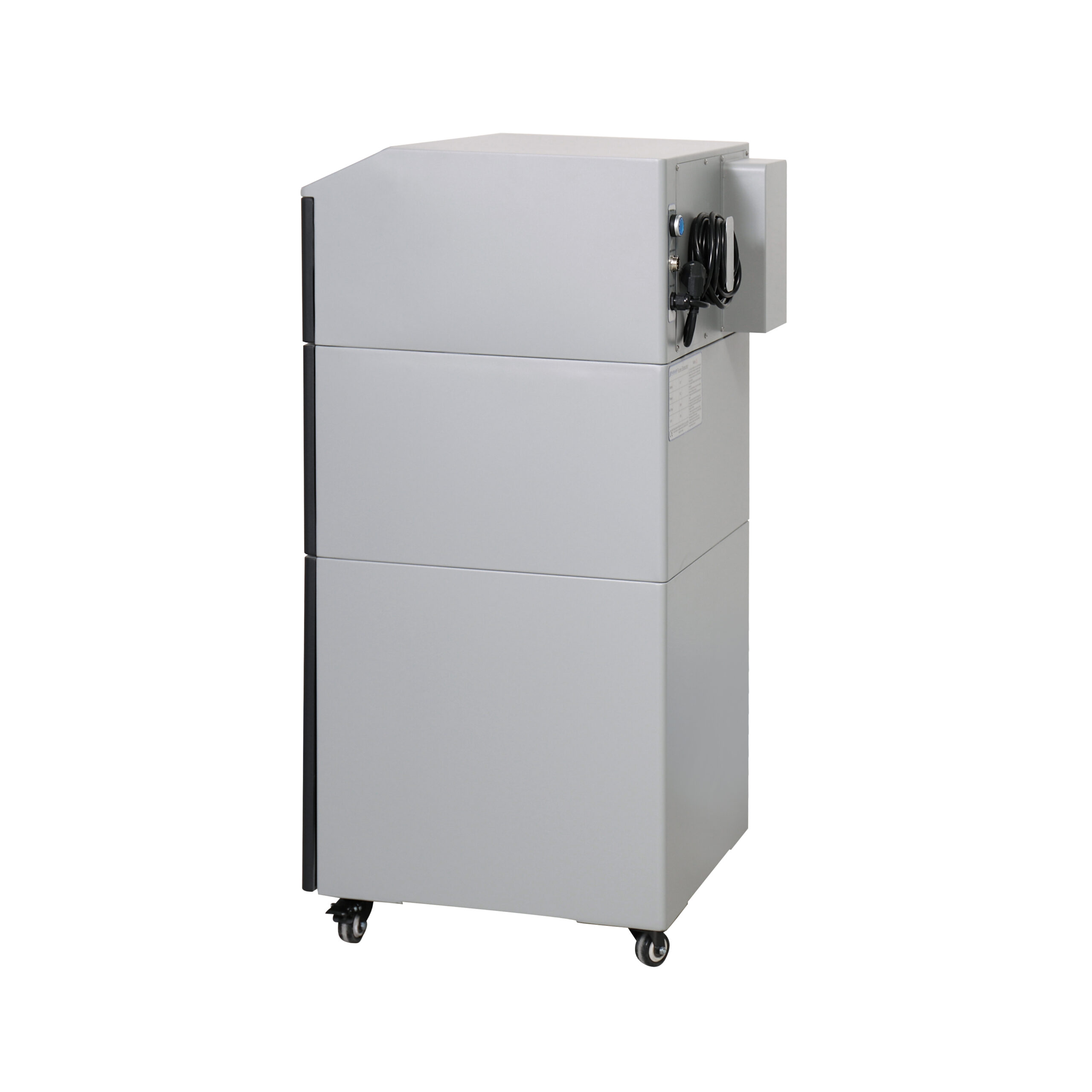

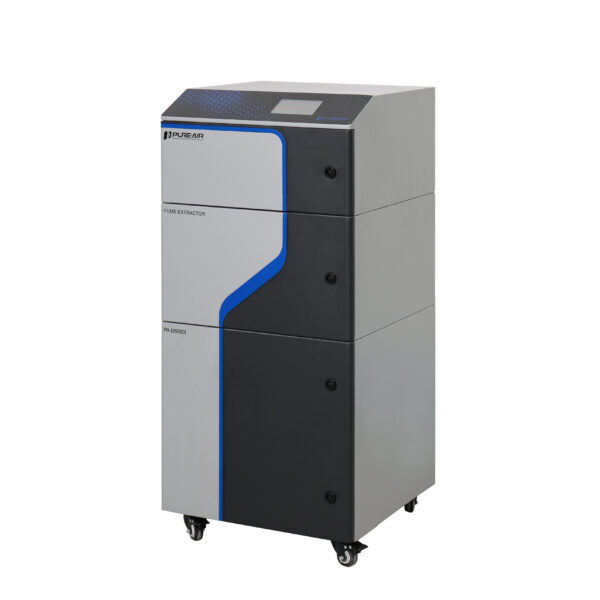

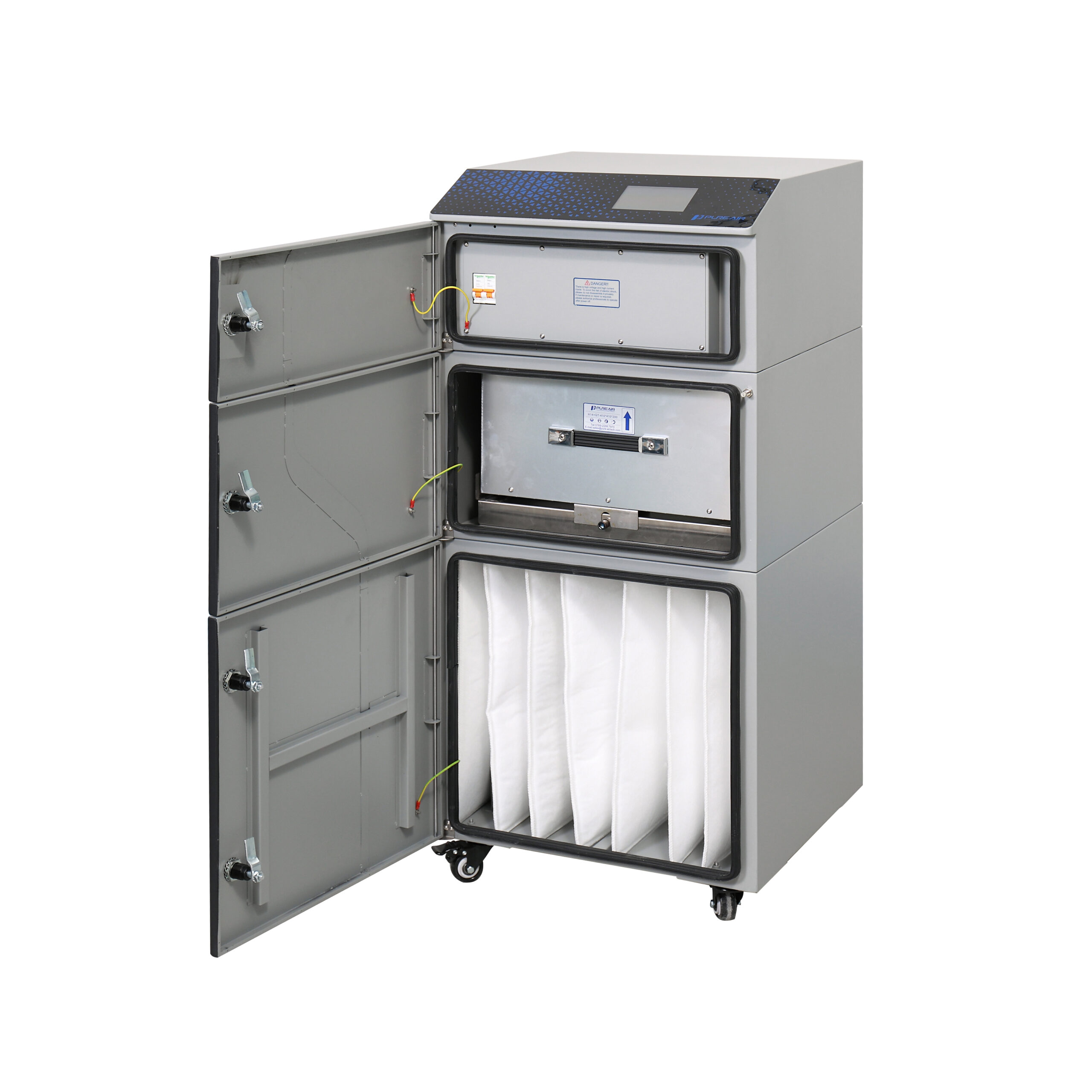

PURE-AIR DS series smoke purification system is our most famous purification series.
These machines are equipped with 10-18KPa high negative pressure brushless fan, multi-stage large area high precision filter (F9+H14) and special activated carbon filter. The air quality after purification is 3 times higher than that of ordinary environment.
Key features
- High-Capacity Capture
►Thermal-resistant fans generate -8000Pa suction to contain dense smoke plumes
►≥800m³/h airflow evacuates heat-intensive fumes instantly

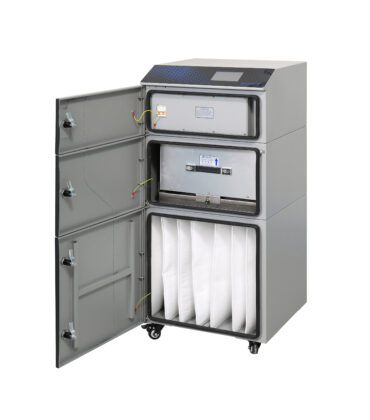

- Triple-Layer Filtration
►Pre-filters trap solder splatter & debris
►HEPA captures 99.99% of 0.3μm particles
►Activated carbon neutralizes acidic gases/VOCs
- Intelligent Operation
► Real-time LCD displays airflow/filter lifespan
► 10-step suction adjustment & clogging alerts
► PLC/RS-485 interfaces for automated line synchronization
- Robust & Economical Design
► 30% more compact with industrial casters
► Maintenance-free motor (30,000+ hours)
► Tool-free filter swaps reduce upkeep by 40%
► ≤65dB noise compliance
Table parameters：
| Model | PA-DS400 | PA-DS500 | PA-DS800 | PA-DS1600 | PA-DS2400 | |
| Airflow | 400m³/hr | 500m³/hr | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 8000Pa | 10000Pa | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 1.0kw | 1.1kw | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||||
| Filter | Pre filter | F9 accordion filter bag (95%@0.9um) | ||||
| Main filter | H14 deeppleat filter (99.997% @0.3um) | |||||
| Treated activated carbon (Weight 12-30kgs approx) | ||||||
| Noise level * | < 58dBA | < 60dBA | < 63dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 450*482*941mm | 550*562*1091mm | 550*562*1091mm | 720*769*1389mm | 800*907*1374mm | |
| Weight | 45kg | 72kg | 75kg | 164.5kg | 201kg | |
| Inlet size | 50mm / 75mm | 75mm / 100mm | 100mm / 125mm | 150mm | 200mm | |
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||||
| * At typical operating speed testing data. | ||||||
