Pulse Jet or Cartridge Filter? Choosing the Right Dust Collectors for Laser Cutting Machines

The Growing Importance of Dust Control in Laser Cutting

In the modern industrial landscape, laser cutting has become an essential process across automotive, metal fabrication, and electronics manufacturing. Its precision and speed are unmatched. However, as laser cutting efficiency increases, so does the generation of fine dust and smoke. These airborne pollutants not only endanger worker health but also compromise machine performance and optical accuracy.

Therefore, installing an efficient dust collector is not just a regulatory necessity—it is a strategic investment in production reliability. Choosing the right dust collector, whether pulse jet or cartridge type, directly determines air filtration efficiency, maintenance costs, and operational uptime.

1. Understanding the Nature of Laser Cutting Dust

Laser cutting produces dust and fumes through thermal decomposition. When high-energy beams interact with metal or polymer surfaces, the material vaporizes or melts, releasing metallic oxides, fine particulates, and volatile gases.

These byproducts vary by material—carbon steel releases iron oxide, while stainless steel emits chromium and nickel compounds. Acrylic or PVC cutting emits organic fumes and sticky particles. Without proper collection, these pollutants accumulate in the workspace, settle on optics, and cause health and safety issues.

Moreover, in a closed environment, even micron-level dust can interfere with laser sensors, leading to inconsistent cutting results. Hence, dust collectors must effectively capture both large and submicron particles.

2. The Role of Industrial Dust Collectors

A dust collector is the heart of any fume extraction system. It captures airborne pollutants, filters them through specialized media, and releases purified air back into the environment.

For laser cutting applications, dust collectors perform three critical tasks:

1. Source capture – drawing dust and fumes directly from the laser head or enclosure.

2. Filtration – separating solid particles and fumes using mechanical or electrostatic methods.

3. Discharge – releasing clean air while collecting the filtered dust safely for disposal.

Two major designs dominate industrial air purification for laser processes—pulse jet dust collectors and cartridge filter dust collectors. Each has distinct mechanical and operational characteristics that make it suitable for different production scales.

3. Pulse Jet Dust Collectors: High-Volume Powerhouses

Pulse jet dust collectors use compressed air bursts to clean filter bags periodically. They are widely used in large factories where continuous high-volume air handling is required.

3.1 Working Principle

Dirty air enters the collector housing, where heavier particles fall into a hopper. Finer dust settles on the surface of filter bags made from woven or felted fabric. Periodically, a pulse of compressed air is released through the bags, dislodging accumulated dust into the hopper below.

This self-cleaning mechanism allows the system to operate continuously without shutdown for manual filter cleaning.

3.2 Key Advantages

• Continuous Operation: Filters remain active during pulse cleaning, ideal for uninterrupted production lines.

• High Airflow Capacity: Suitable for large laser cutting cells or multiple machines.

• Durability: Filter bags resist abrasion and can handle high dust loads.

• Automation Ready: Can integrate with PLC systems for real-time monitoring of pressure and cleaning cycles.

3.3 Limitations

While efficient for coarse and medium dust, pulse jet collectors can struggle with sticky or submicron particles common in fine laser cutting of coated metals or plastics. They also require more installation space and higher compressed air consumption.

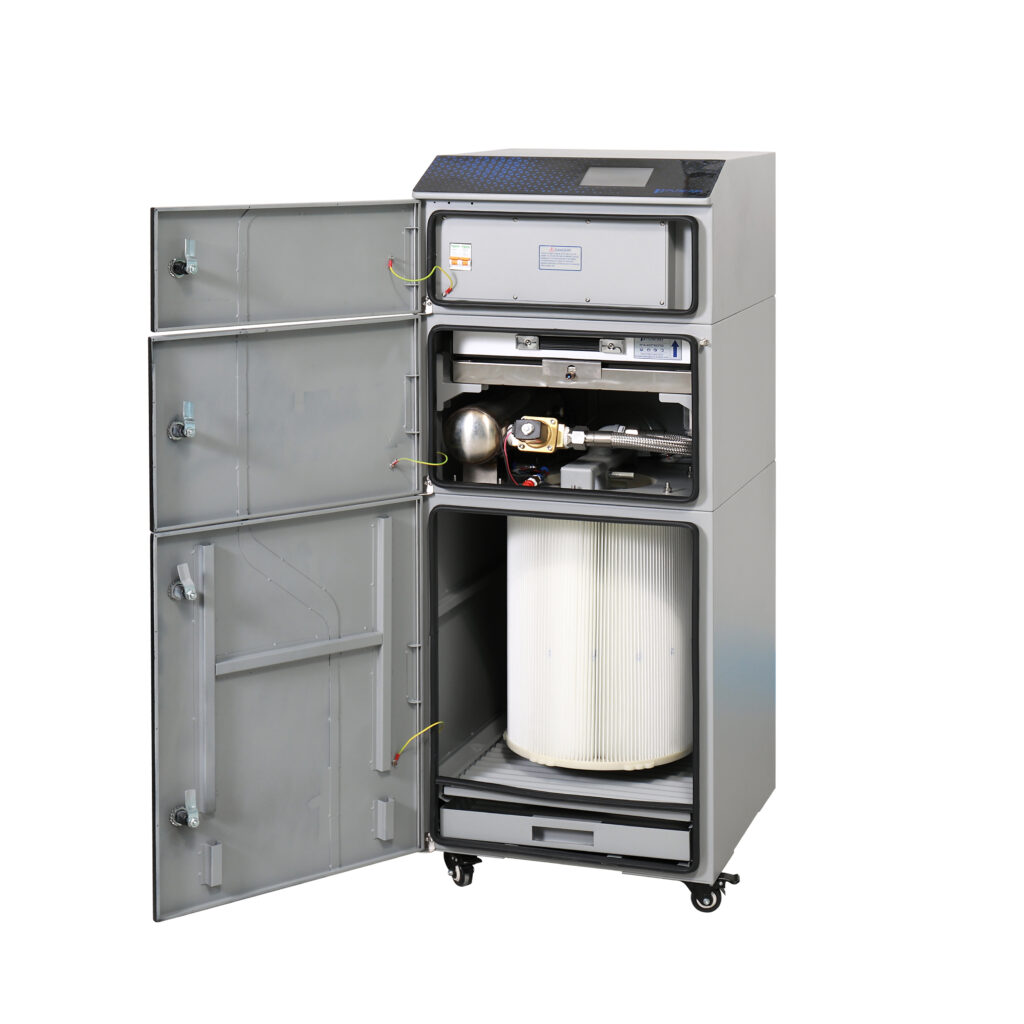

4. Cartridge Filter Dust Collectors: Precision and Compact Efficiency

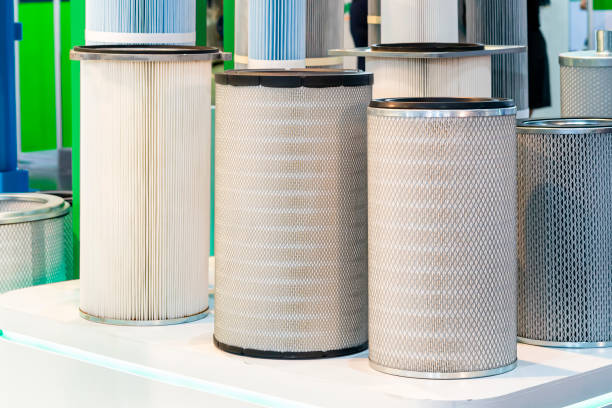

Cartridge filter dust collectors are compact systems that use pleated filter elements instead of bags. These pleated cartridges increase surface area, enhancing fine-particle capture within a smaller footprint.

4.1 Working Principle

Contaminated air enters the collector and flows through cylindrical cartridge filters. Dust particles adhere to the outer pleated surface, while clean air exits from the inside. A reverse pulse of air periodically cleans the filter surface, maintaining consistent airflow and filtration performance.

4.2 Advantages

• High Filtration Efficiency: Captures particles as small as 0.3 microns.

• Compact Design: Ideal for standalone laser machines or small workshops.

• Lower Pressure Drop: The pleated design reduces resistance, improving energy efficiency.

• Easy Maintenance: Cartridge replacement is quick and tool-free.

• Versatile Media Options: Available in PTFE, nanofiber, and anti-static coatings for different materials.

4.3 Limitations

Cartridge filters can clog faster when handling oily or sticky fume residues. In high-temperature or high-humidity conditions, their lifespan may be shortened compared to traditional fabric bags. Therefore, proper pre-filtration and periodic inspection are essential.

5. Comparing Performance: Pulse Jet vs. Cartridge Filter

In essence, pulse jet systems excel in large-scale environments demanding continuous operation, while cartridge filters dominate in precision manufacturing requiring high filtration efficiency.

6. Application Scenarios in Laser Cutting Factories

Choosing between pulse jet and cartridge systems depends on factory scale, material type, and dust characteristics.

6.1 High-Volume Metal Cutting Lines

Factories cutting carbon steel or aluminum sheets in multiple shifts benefit from pulse jet dust collectors. These systems manage high dust concentrations efficiently and operate continuously with minimal maintenance.

6.2 Precision Laser Engraving or Marking

For smaller, high-precision laser machines—such as those used in electronics, medical devices, or jewelry manufacturing—cartridge dust collectors are ideal. Their compact design and fine filtration prevent optical contamination and ensure cleanroom-level air quality.

6.3 Mixed-Material Production

In workshops processing both metals and plastics, hybrid systems combining pre-filters, cartridge filters, and activated carbon modules deliver balanced performance. They capture particulates while adsorbing volatile organic compounds (VOCs).

7. Design Considerations for Optimal Dust Collection

A well-engineered system is more than a choice of filter type. Proper dust collection system design maximizes performance and longevity.

7.1 Airflow and Suction Power

Selecting appropriate airflow capacity ensures that contaminants are captured directly at the source. Undersized systems lead to dust escape; oversized systems waste energy. Computational fluid dynamics (CFD) modeling can optimize duct layouts and suction points.

7.2 Filter Media Selection

Different materials require specific filter coatings. For instance, cutting stainless steel benefits from anti-static or PTFE membranes, while acrylic cutting requires filters resistant to sticky residues.

7.3 Automatic Cleaning and Monitoring

Smart systems equipped with differential pressure sensors and control panels allow predictive maintenance. These sensors alert operators before airflow efficiency drops, minimizing downtime.

7.4 Noise and Energy Optimization

Modern dust collectors integrate acoustic insulation and variable frequency drives (VFDs). These components adjust fan speed dynamically, reducing noise and saving power.

8. Environmental and Health Compliance

Global regulations such as OSHA, ISO 14644, and EU Directive 2004/37/EC set limits on permissible exposure levels for airborne particulates and toxic fumes. Chromium, nickel, and manganese compounds released during laser cutting are classified as hazardous.

An efficient dust collector ensures compliance with these standards by keeping particle concentrations well below regulatory thresholds. Furthermore, it protects workers from respiratory hazards and improves indoor air quality, enhancing employee safety and corporate reputation.

Factories that implement robust fume extraction systems often experience lower absenteeism and higher productivity.

9. Maintenance Strategies for Long-Term Efficiency

Both pulse jet and cartridge systems demand consistent maintenance to sustain performance. However, automation simplifies this process.

• Filter Monitoring: Regularly check differential pressure to gauge filter loading.

• Scheduled Cleaning: Adjust pulse intervals based on dust load conditions.

• Sealing Inspection: Ensure airtight connections to prevent dust leakage.

• Waste Handling: Safely dispose of collected dust, especially if it contains heavy metals.

PURE-AIR recommends modular cartridge systems for ease of maintenance in compact laser workshops and pulse jet systems for centralized, multi-machine setups.

10. Cost-Benefit Analysis

Although pulse jet systems have higher initial costs, their longevity and high throughput make them cost-effective for large factories. Cartridge collectors, on the other hand, offer lower installation costs and energy efficiency, ideal for small to mid-scale applications.

Ultimately, the correct selection minimizes the total cost of ownership (TCO) by balancing performance, maintenance, and operational expenses.

11. Technological Innovations in Dust Collection

Recent advancements have made industrial dust collectors smarter and more sustainable:

• IoT-Enabled Monitoring: Real-time data on filter status, airflow, and power consumption.

• Energy-Efficient Fans: Optimized impeller designs for reduced drag.

• Nano-Fiber Filters: Improved particle capture with lower resistance.

• Modular System Design: Easy scalability for expanding production lines.

PURE-AIR continues to integrate these innovations, helping manufacturers achieve cleaner air and better productivity through intelligent filtration.

Conclusion: Making the Right Choice for Precision and Sustainability

In laser cutting environments, clean air is essential for precision, productivity, and safety. Both pulse jet and cartridge dust collectors play vital roles, but their suitability depends on operational scale, dust characteristics, and maintenance preferences.

For large-scale, high-volume cutting, pulse jet systems deliver reliability and endurance. For precision-focused production with fine particulates, cartridge filters offer compact efficiency.

Ultimately, the right dust collector ensures consistent laser performance, protects workers, and supports sustainable manufacturing. As industries move toward automation and green production, efficient dust collection becomes not just an accessory—but the foundation of modern laser factory operations.
